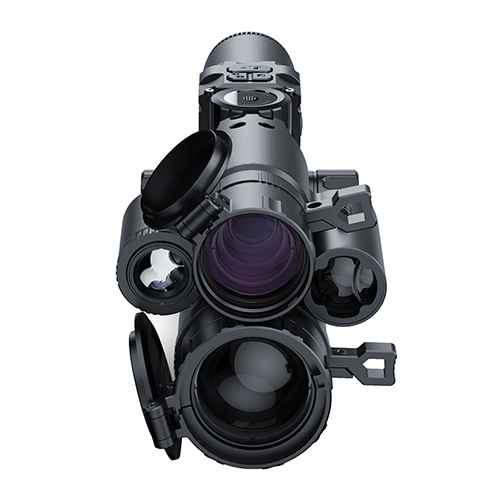

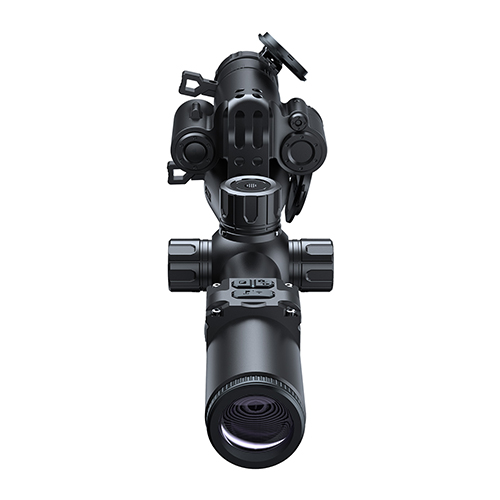

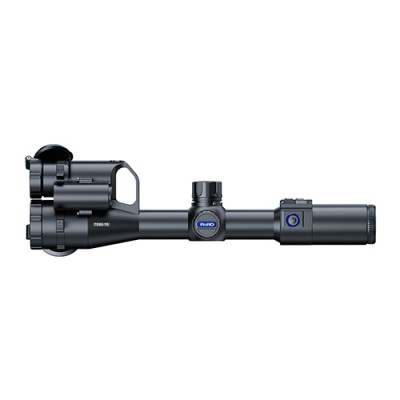

Model : TD32-70 / TD62-70
Classification : Multi-spectral Thermal/Night Vision Scope
Thermal Sensor
Type : Uncooled Vox IR Sensor
Resolution(pixel) : 384*288 / 640*512
Pixel Size(µm) : 12*12 / 12*12
NETD : ≤25mK(0.025℃) / ≤25mK(0.025℃)
Frame Rate(Hz) : 50 / 50
Human Detection Distance(m) : 1400 / 1800
Vehicle Detection Distance(m) : 2600 / 3300
Image Engine : PARD IREA / PARD IREA
Objective lens(mm) : 35 / 45
Optical Magnification(x) : 3 / 2
Digital Zoom(x) : 2 / 2
Continuous Digital Zoom(x) : 3-6 / 2-4
Field of View (HxV)
Horizontal : 5.7° / 5.6°
Vertical : 5.7° / 5.6°
Diagonal : 8° / 7.9°
Focus range : 3m-∞ / 3m-∞
Visible Light Sensor
Type : CMOS Sensor
Resolution(pixel) : 1920*1080 / 2560*1440
Pixel Size(μm) : 2.9 / 2.9
Sensitivity(lux) : 0.001 / 0.001
Frame Rate(Hz) :
60/30
30
Image Engine : PARD VLEA / PARD VLEA
Objective Lens(mm) : 70 / 70
Optical Magnification(x) : 6.5 / 3.2
Digital Zoom(x) : 2 / 2
Continuous Digital Zoom(x) : 6.5-13 / 3.2-6.4
Field of View (HxV)
Horizontal : 2.6° / 3.4°
Vertical : 2.6° / 3.4°
Diagonal : 3.6° / 4.8°
Focus range : 3m-∞ / 3m-∞
Display
Type : IPS
Resolution(pixel) : 800*800
Reticle Style : 6
Reticle Color : 4(Red/White/Yellow/Green)
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Eye Relief(mm) : 100
Diopter Adjustment(D) : -5~+3
Photo / Video
Photo Resolution(pixel) : 2592*1944
Photo Format : .JPG
Video Resolution(pixel) : Thermal: 1024*768/Night Vision: 1440*1080
Video Format : .mp4
Storage(GB) : Micro SD card (Max. 128)
Main Function
LRF Detection Range(yd/m) : 1200/1000
PIP : Yes
Gyroscope : Yes
Loop Recording : Yes
Red Dot : Yes
E-compass : Yes
Shutter : Mechanical shutter
Microphone : Yes
Firmware Upgrade : Yes
IR Illuminator
IR Type : VCSEL
IR power(W) : 5
IR Illuminating Level : 3 Levels
IR Distance(m) : 350
IR Wavelength(nm) : 850/940
Interfaces
USB Type-C : Yes
HDMI Output : Yes
Connections
WiFi : Yes
Supported Apps : PardVision
Power Supply
Battery type : Li-ion 21700*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤6
External Power Supply Type : Type-C
Environmental characteristic
Degree of Protection : IP67
Operating Temp(°C/°F) : -20 ~ +50 / -4 ~ +122
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
Objective lens : All-glass multi-coated lens
Measurement
Product Dimension(L * W * H, mm) : 350*91*95
N.W/pcs(without battery, g) : 800
code:
td32-70/850/f ～ td62-70/850/f
