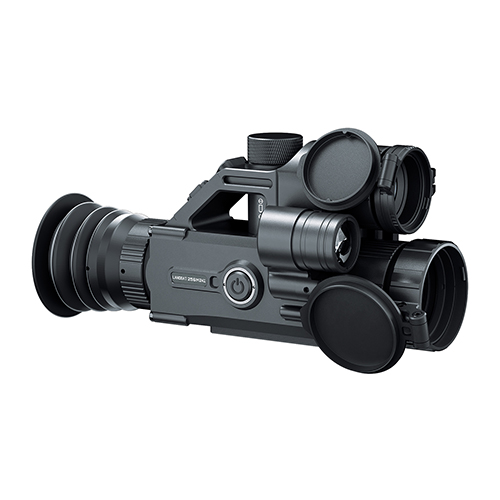

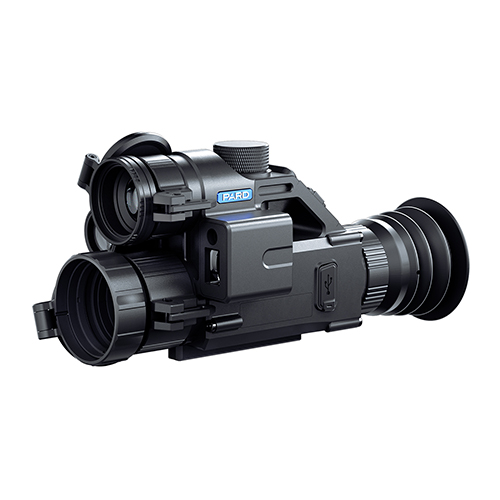

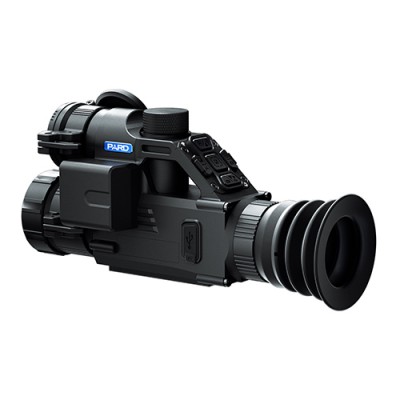

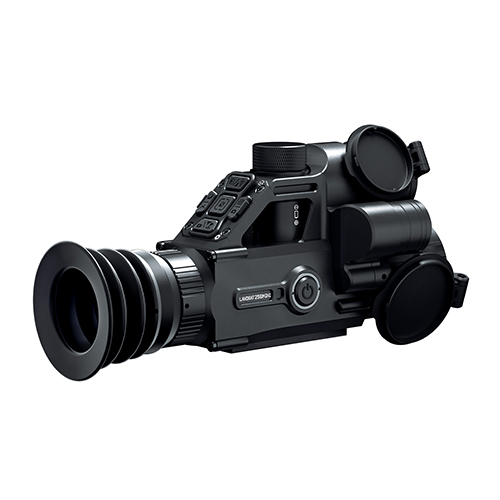

Model : Landsat 256 Mini
Classification : Multi Spectral Scope
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 256*192
Pixel Size(µm) : 12*12
NETD : ≤25mK(0.025℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 900/1200
Image Engine : PARD VLEA
Objective Lens(mm) : 19/25
Optical Magnification(x) : 3.2/4.2
Digital Zoom(x) : 2/4/6/8
Field of view (HxV)
Horizontal : 9.2°/7°
Vertical : 6.9°/5.3°
Diagonal : 11.5°/8.8°
Focus Range : 3m-∞
Optics
Resolution(pixel) : 1920*1080
Pixel Size(μm) : 2.9
Sensitivity(lux) : 0.001
Frame Rate(Hz) : Color:60/Mono:30
Image Engine : Pard IREA
Objective Lens(mm) : 30
Optical Magnification(x) : 3.7
Digital Zoom(x) : 2
Field of view (HxV)
Horizontal : 8°
Vertical : 6°
Diagonal : 9.9°
Focus Range : 3m-∞
Display
Type : OLED
Resolution(px) : 1024*768
Scene Mode : City/Rain/Forest
Eye Relief(mm) : 25
Diopter Adjustment(D) : -5~5
Image Mode : WT-HOT/BK-HOT/IN-HOT/RD-HOT/SKY
Photo / Video
Photo Resolution(px) : 1024*768
Photo Format : .JPG
Video Resolution(px) : 1024*768
Video Format : .mp4
Storage : Built-in EMMC (32 GB)
Main function
LRF Detection Range : 1000m/1200yd
Gyroscope : Yes
PIP : Yes
E-compass : Yes
Loop Recording : Yes
Microphone : Yes
Shutter : Mechanical shutter
Firmware Upgrade : Yes
IR Illuminator
IR Powe : 5W
IR Illuminating Level : 3 Levels
IR Distance(m) : 350
IR Wavelength(nm) : 850/940
Connections
USB Tpye-C : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 18650*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤6
External Power Supply : Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Material
Housing : Aluminum Alloy
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension(with IR illuminator&LRF, L x W x H, mm) : 170*77*85
N.W/pcs(with LRF&battery, g) : 520
code:
la2m-19/30/850/lrf ～ la2m-19/30/940/lrf
