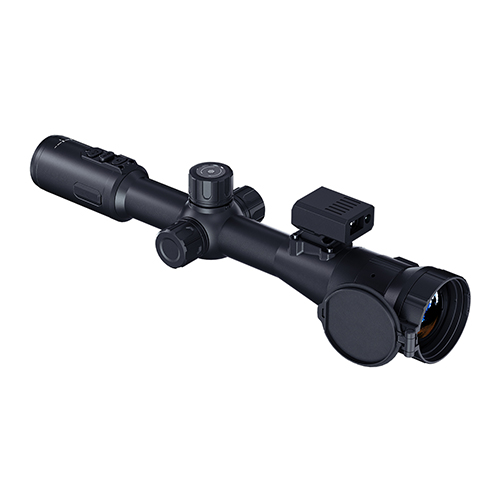

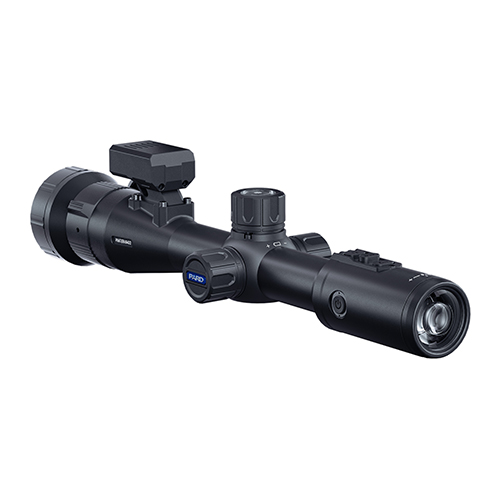

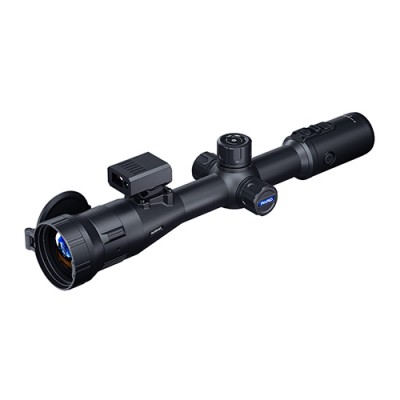

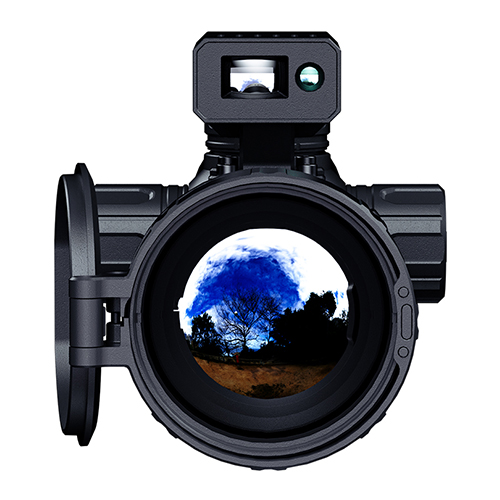

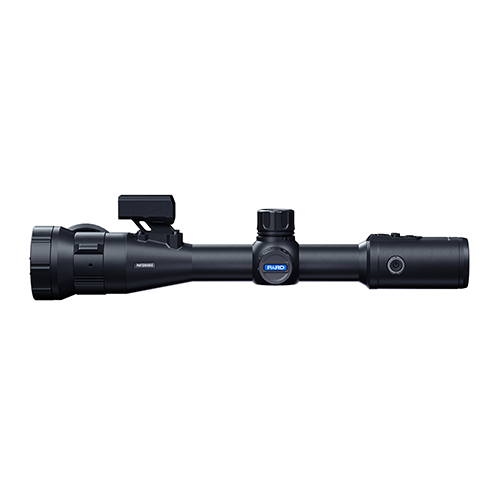

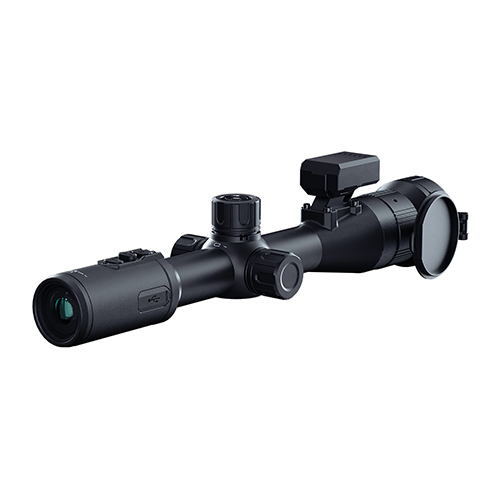

Model : Pantera 480 Q / Pantera 640 Q
Classification : Thermal Imaging Scope
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 480*360 / 640*512
Pixel Size(µm) : 12*12
NETD : ≤18mK(0.018℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 1800/2600 / 2600
Optics :
Objective Lens(mm) : 35/50 / 50
Optical Magnification(x) : 2.6/3.7 / 3
Digital Zoom(x) : 2/4/6/8
Field of view (HxV)
Horizontal :
9.4°/6.6°
8.8°
Vertical :
7.1°/4.9°
7°
Diagonal :
11.7°/8.2°
11.2°
Field of view (m @100m)
Horizontal :
16.5/11.5
15.4
Vertical :
12.3/8.6
12.3
Focus Range : 10m-∞
Eye Relief(mm) : 60
Diopter Adjustment(D) : -5~+5
Display
Type : OLED
Resolution(px) : 1600*1200
Reticle Style : 7
Reticle Color : Red/White/Yellow/Green
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) : 1600*1200
Photo Format : .JPG
Video Resolution(px) : 1600*1200
Video Format : .mp4
Storage : Micro SD card (Max. 128GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : 1000m/1200yd
Ballastic Caculator : Yes
PIP : Yes
Hot Track : Yes
Gyroscope : Yes
Recoil-activated Recording : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 21700*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤8
External Power Supply : USB Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension(with LRF, L x W x H, mm) : 345*86*80
N.W/pcs(with battery, g) : 723
code:
pa4q-35 ～ pa6q-50/lrf
