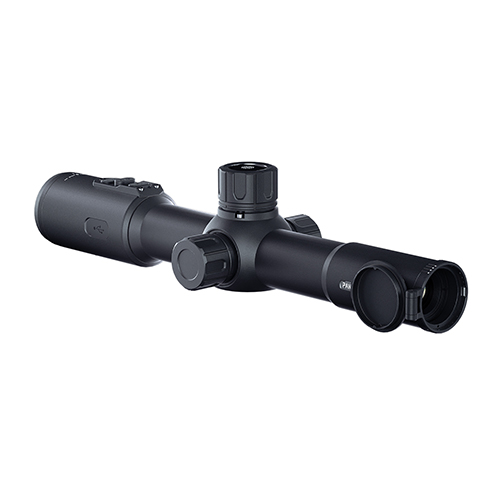

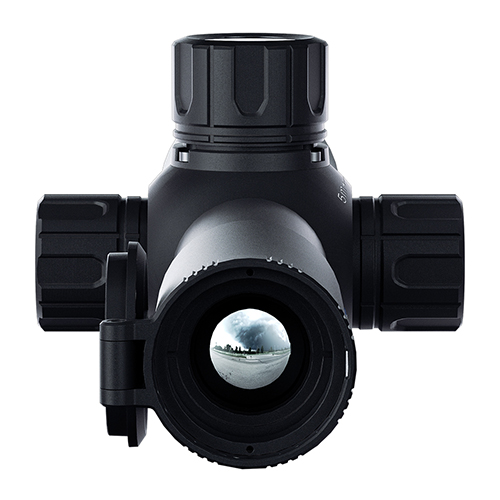

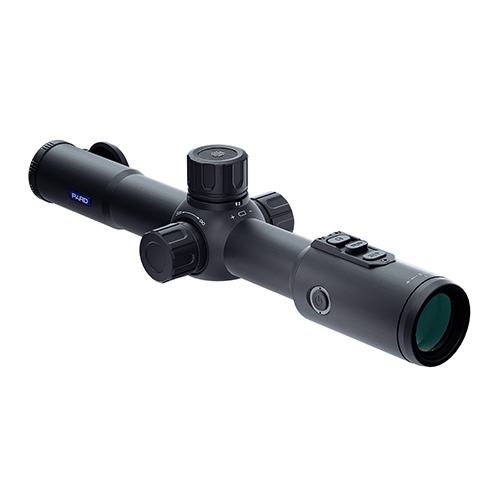

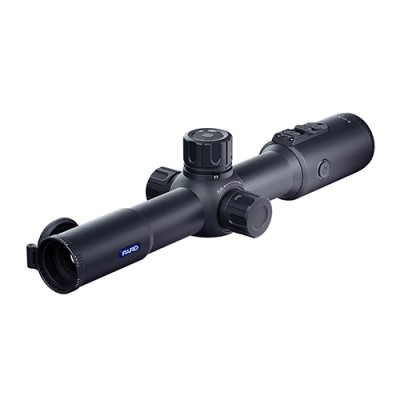

Model : Pantera 256 Q
Classification : Thermal Imaging Scope
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 256*192
Pixel Size(µm) : 12*12
NETD : ≤25mK(0.025℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 1200
Optics
Objective Lens(mm) : 25
Optical Magnification(x) : 3.6
Digital Zoom(x) : 2/4/6/8
Field of view (HxV)
Horizontal : 7°
Vertical : 5.3°
Diagonal : 8.8°
Field of view (m @100m)
Horizontal : 12.3
Vertical : 9.2
Focus Range : 5m-∞
Eye Relief(mm) : 50
Diopter Adjustment(D) : -5~+5
Display
Type : OLED
Resolution(px) : 1024*768
Reticle Style : 5
Reticle Color : Red/White/Yellow/Green
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) : 1024*768
Photo Format : .JPG
Video Resolution(px) : 1280*1280
Video Format : .mp4
Storage : Built-in EMMC(32GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : NO
Ballastic Caculator : NO
PIP : Yes
Hot Track : Yes
Gyroscope : Yes
Recoil-activated Recording : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Microphone : Yes
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
HDMI Output : NO
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 18650*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤6
External Power Supply : USB Type-C
Environmental characteristic :
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension(L * W * H, mm) : 295*82*70
N.W/pcs(with battery, g) : 490
code:
pa2q-25
