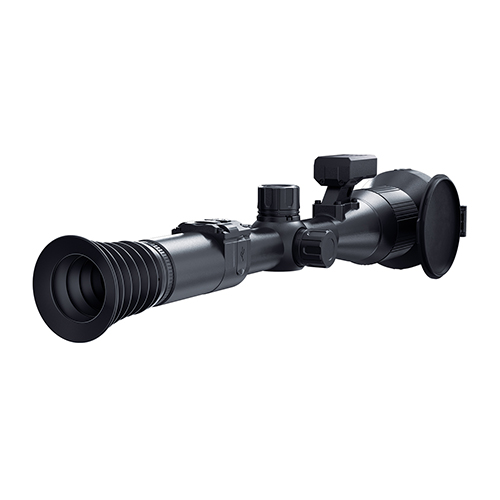

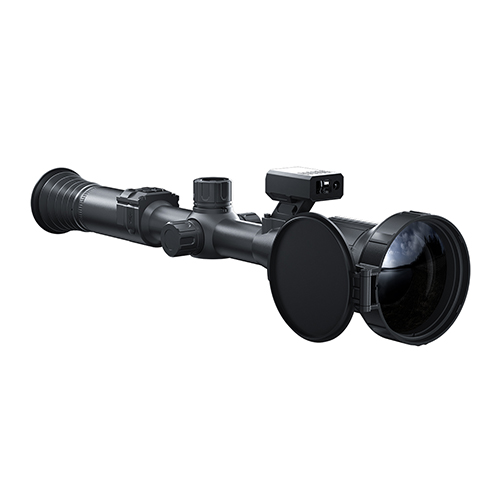

Model : Pantera 640 2.0
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 640*512
Pixel size(µm) : 12*12
NETD(mK) : ≤15mK(0.015℃)
Frame rate(Hz) : 50
Detection Distance(m) : 2900
Optics
Objective lens : 75
Optical Magnification(x) : 3.8
Digital zoom(x) : 2/4/6/8
Field of view (HxV) :
4.7°
4.7°
6.6°
Eye relief(mm) : 100
Diopter adjustment(D) : -5~+3
Display
Type : IPS
Resolution(px) : 800*800
Reticle Style : 6
Reticle Color : Red/White/Yellow/Green
Scene Mode : City/Rain/Forest
Image mode : WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo resolution(px) : 1536*1536
Photo format : .JPG
Video resolution(px) : 768*768
Video format : .MP4
Storage(GB) : Micro SD card (Max. 128GB)
Image Engine : Pard IREA
Main function
LRF detection range(m) : 1000
Ballistic Calculator : Yes
PIP : Yes
Hot Track : Yes
Gyroscope : Yes
Recoil-activated Recording : Yes
Loop recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Microphone : Yes
Firmware Upgrade : Yes
Interfaces
USB Tpye-C : Yes
HDMI Output : Yes
Connections
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery type : Lithium Ion 18650*1
Output voltage(V) : 3.7
Operating time(h) : ≤6
External power supply(V) : Type-C
Environmental characteristic
Degree of protection : IP67
Operating temp(℃/℉) : -30℃~55℃/-22℉~131℉
Material
Housing : Aluminium Alloy
Objective lens : All-glass multi-coated lens
Measurement
Product dimension(L x W x H, mm) : 400*105*110
N.W/pcs(with LRF&battery, g) : 945
code:
pa62-75/lrf
