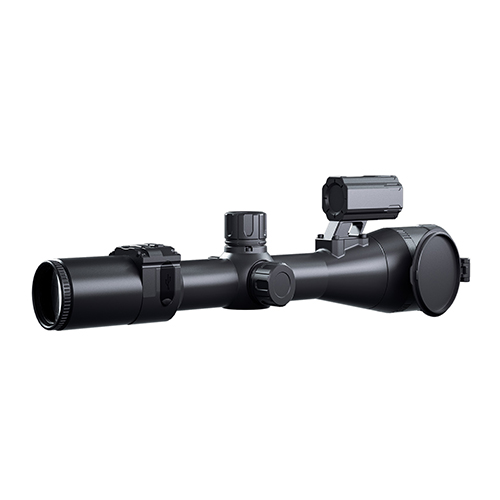

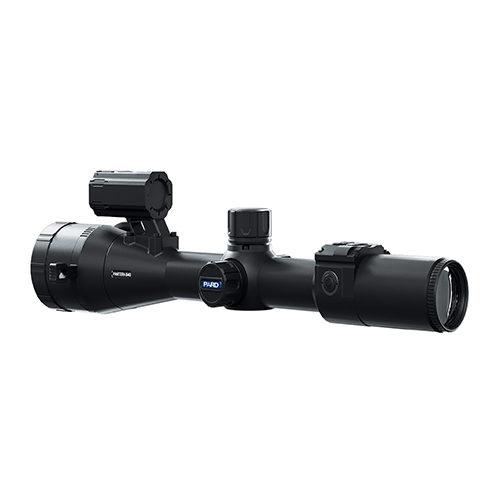

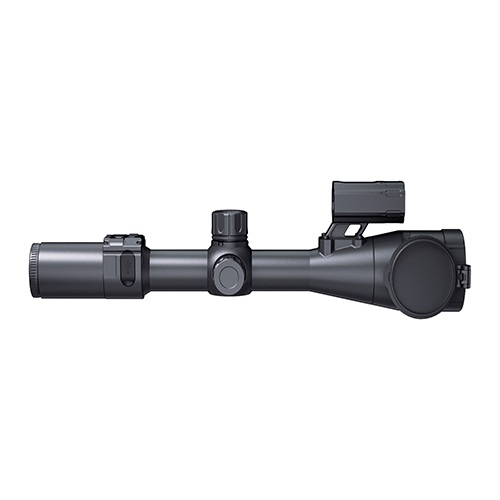

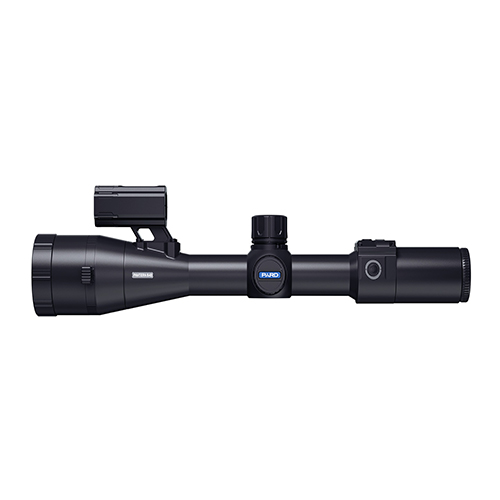

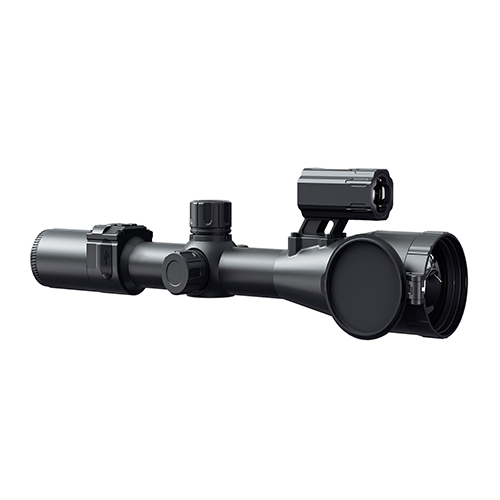

Model : Pantera 480 / Pantera 640
Classification : Thermal Imaging Scope
Thermal Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(pixel) : 480*360 / 640*512
Pixel Size(µm) : 12*12 / 12*12
NETD : ≤20mK(0.02℃) / ≤20mK(0.02℃)
Frame Rate(Hz) : 50 / 50
Detection Distance(m) :
1800/2600
2600/3900
Optics
Objective lens(mm) :
35/50
50/75
Optical Magnification(x) :
2.1/3.0
2.2/3.3
Digital Zoom(x) :
2/4/6/8
2/4/6/8
Field of View (HxV)
Horizontal :
7.1°/5.0°
7.0°/4.7°
Vertical :
7.1°/5.0°
7.0°/4.7°
Diagonal :
10.0°/7.0°
9.9°/6.6°
Eye Relief(mm) : 100 / 100
Diopter Adjustment(D) : -5~+3 / -5~+3
Type : IPS
Resolution(pixel) : 800*800 / 800*800
Reticle Style : 6 / 6
Reticle Color :
Red/White/Yellow/Green
Red/White/Yellow/Green
Scene Mode :
City/Rain/Forest
City/Rain/Forest
Image mode :
WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel) : 1536*1536
Photo Format : .JPG
Video Resolution(pixel) : 768*768
Video Format : .mp4
Storage(GB) : Micro SD card(Max. 128)
Image Engine : Pard IREA
Main function
LRF detection range(m/yd) : 1000/1200
Ballistic Calculator : Yes
PIP : Yes
Hot Track : Yes
Gyroscope : Yes
Recoil-activated recording : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical Shutter
Microphone : Yes
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 18650*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤6
External power supply(V) : Type-C
Environmental characteristic
Degree of protection : IP67
Operating Temp(°C/°F) : -30 ~ +55 / -22 ~ +131
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension/with LRF(L * W * H, mm) :
"Pantera 480-35mm Lens: 352*93*82 Pantera 480-50mm Lens: 364*93*82"
"Pantera 640-50mm Lens: 364*93*82 Pantera 640-75mm Lens: TBD"
N.W/pcs(with LRF&battery, g) :
"Pantera 480-35mm Lens: 622 Pantera 480-50mm Lens: 681.5"
"Pantera 640-50mm Lens: 681.5 Pantera 640-75mm Lens: TBD"
code:
pa4-35 ～ pa6z-2550/lrf
