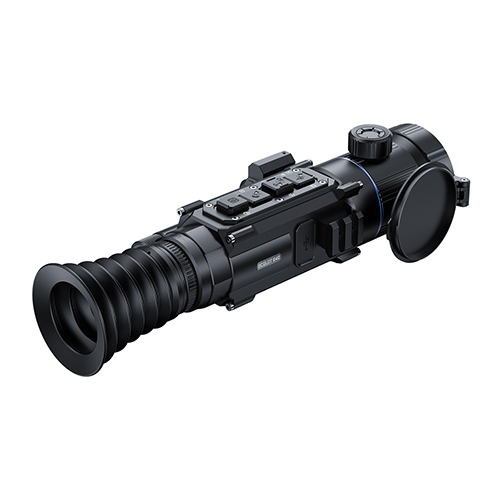

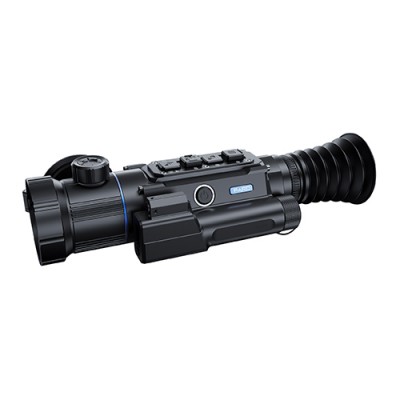

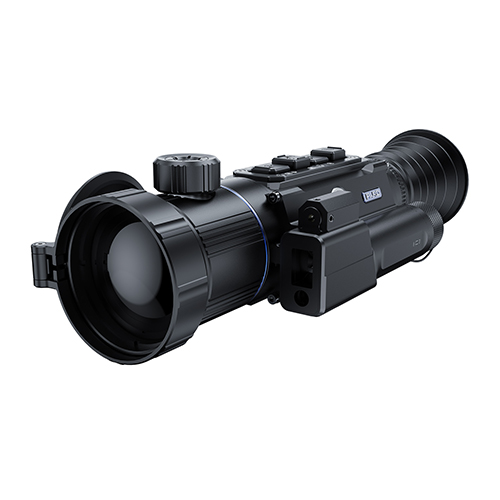

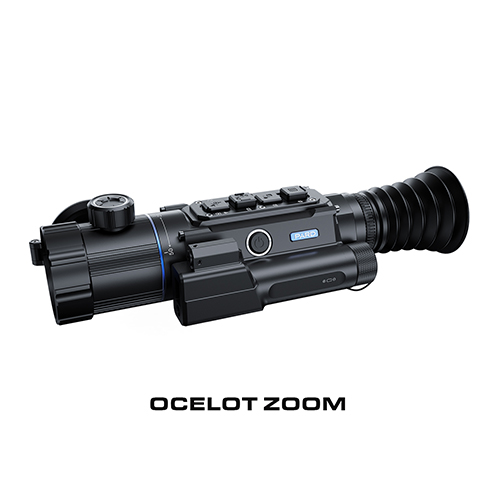

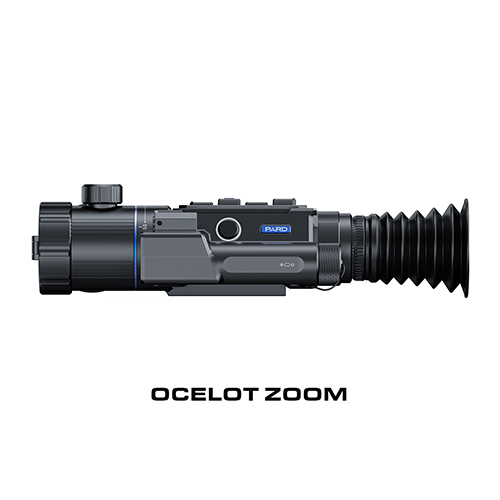

Model : Ocelot 480 / Ocelot 640
Classification : Thermal Imaging Scope
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 480*360 / 640*512
Pixel Size(µm) : 12*12
NETD : ≤20mK(0.02℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 1800/2600 / 2600
Optics
Objective Lens(mm) : 35/50 / 50
Optical Magnification(x) : 2.3/3.3 / 2.5
Digital Zoom(x) : 2/4/6/8
Field of view (HxV) Horizontal : 7.1°/5.0° / 7.0°
Vertical : 7.1°/5.0° / 7.0°
Diagonal : 10.0°/7.0° / 9.9°
Eye Relief(mm) : 100
Diopter Adjustment(D) : -5~+3
Display
Type : IPS
Resolution(px) : 800*800
Reticle Style : 6
Reticle Color : Red/White/Yellow/Green
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) : 1536*1536
Photo Format : .JPG
Video Resolution(px) : 768*768
Video Format : .mp4
Storage : Micro SD card (Max. 128GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : 1000m/1200yd
Ballastic Caculator : Yes
PIP : Yes
Hot Track : Yes
Gyroscope : Yes
Recoil-activated Recording : Yes
Loop Recording : Yes
E-compass : Yes
Microphone : Yes
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 21700*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤5
External Power Supply : USB Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension(L x W x H, mm) : 182*68*79
N.W/pcs(with/without battery, g) :
Ocelot 480-35mm lens: 616.5g
Ocelot 480-50mm lens: 647.5g
/ 647.5g
G.W/pcs(with/(without battery, g) : 540g
code:
oc4-35/lrf ～ oc6z-2550/lrf
