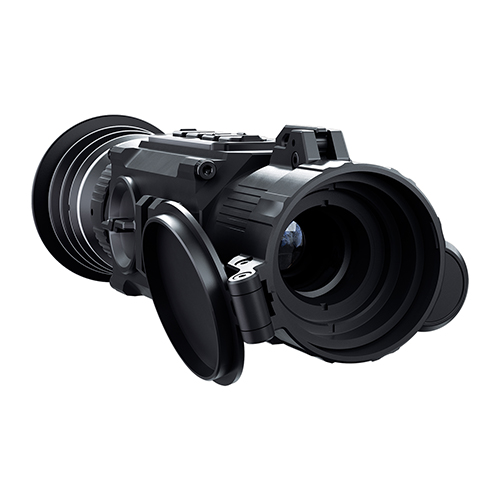

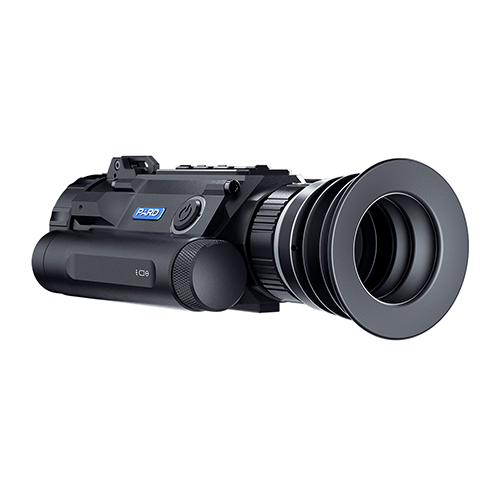

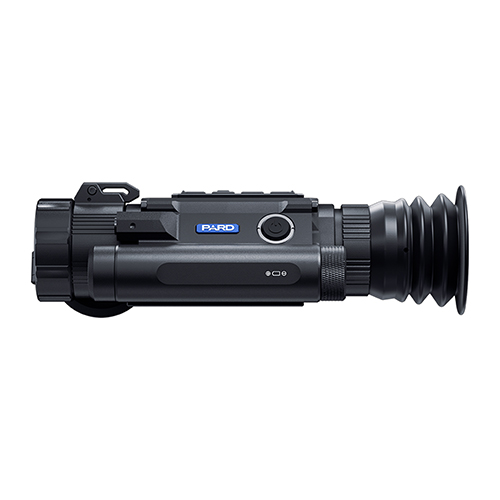

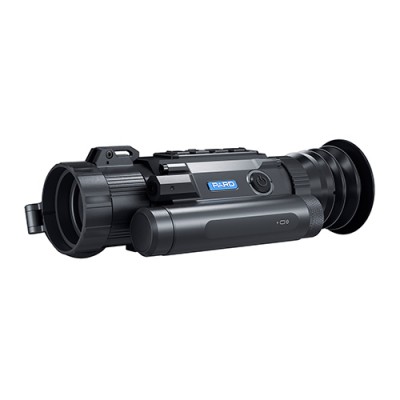

Model : Ocelot 256
Classification : Thermal Imaging Scope
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 256*192
Pixel Size(µm) : 12*12
NETD : ≤25mK( 0.025℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 900
Optics
Objective Lens(mm) : 19
Optical Magnification(x) : 3.2
Digital Zoom(x) : 2/4/6/8
Field of view (HxV)
Horizontal : 9.2°
Vertical : 6.9°
Diagonal : 11.5°
Eye Relief(mm) : 30
Focus range : 3m-∞
Diopter Adjustment(D) : -5~5
Display
Type : OLED
Resolution(px) : 1024*768
Reticle Style : 5
Reticle Color : 4(Red/White/Yellow/Green)
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) : 1024*768
Photo Format : .JPG
Video Resolution(px) : 1024*768
Video Format : .mp4
Storage : Built-in EMMC (32 GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : 1000m/1200yd
PIP : Yes
Gyroscope : Yes
Microphone : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type :
Lithium Ion 18650
3.7
Operating Time(h) : ≤6
External Power Supply : USB Type-C
Environmental characteristic :
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Material
Housing : Aluminum Alloy
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension(with LRF, L x W x H, mm) : 180*65*40
N.W/pcs(with battery, g) : 420
code:
oc2-19
