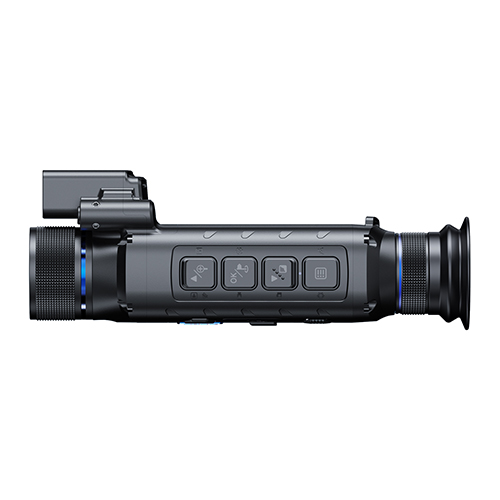

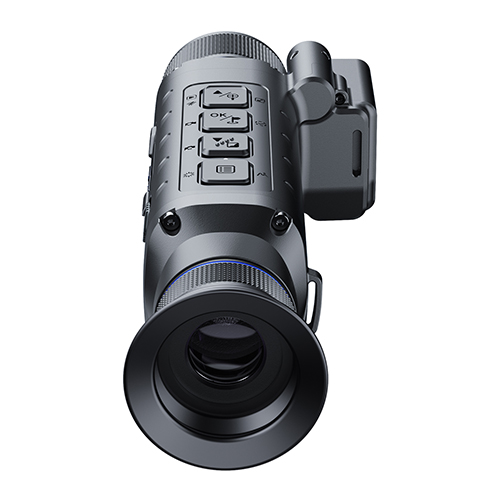

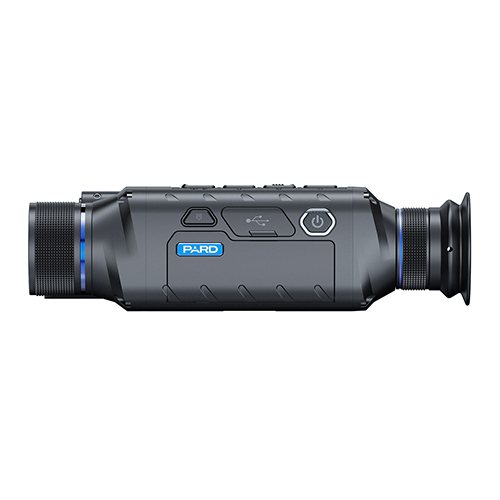

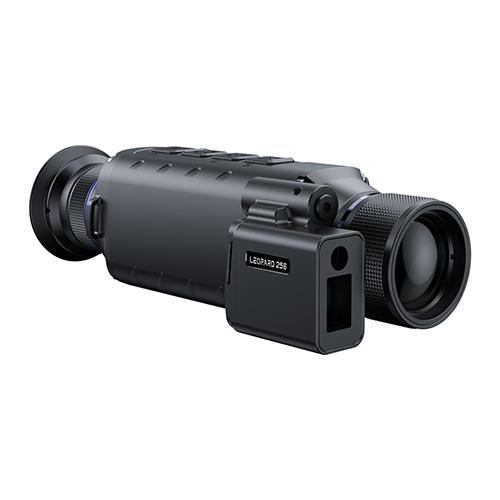

Model : Leopard 480 / Leopard 640
Classification : Thermal Imaging Monocular
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 480*360 / 640*512
Pixel Size(µm) : 12*12
NETD : ≤20mK(0.02℃)
Frame Rate(Hz) 50
Detection Distance(m) : 1200/1800
Optics
Objective Lens(mm) : 25/35
Optical Magnification(x) :
2/2.8
1.6/2.2
Digital Zoom(x) : 2/4/6/8
Field of view (HxV)
Horizontal : 13.1°/9.4° / 17.5°/12.5°
Vertical : 9.9°/7.1° / 14.0°/10.0°
Diagonal : 16.4°/11.7° / 22.3°/16.0°
Eye Relief(mm) 20
Diopter Adjustment(D) : -5~+5
Display
Type : AMOLED
Resolution(px) : 1920*1080
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) : 1440*1080
Photo Format : .JPG
Video Resolution(px) : 1440*1080
Video Format : .mp4
Storage : Micro SD card (Max. 128GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : 1000m/1200yd
PIP : Yes
Hot Track : Yes
Gyroscope : Yes
Microphone : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 18650*1
Output Voltage(V) 3.7
Operating Time(h) : ≤6
External Power Supply : USB Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Material
Housing : Aluminum Alloy+Composite
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension(L x W x H, mm) : 169*58*48
N.W/pcs(with LRF&battery, g) : 360
code:
le4-25 ～ le6-50/lrf
