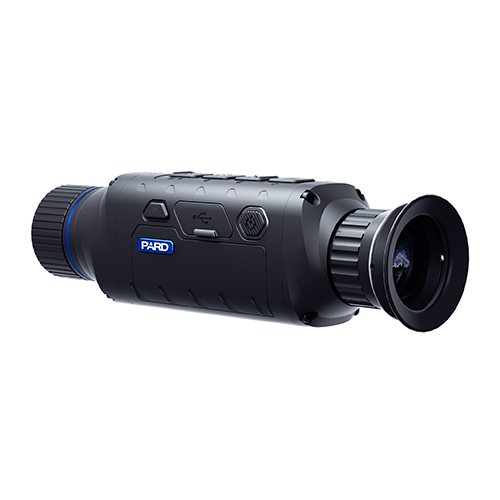

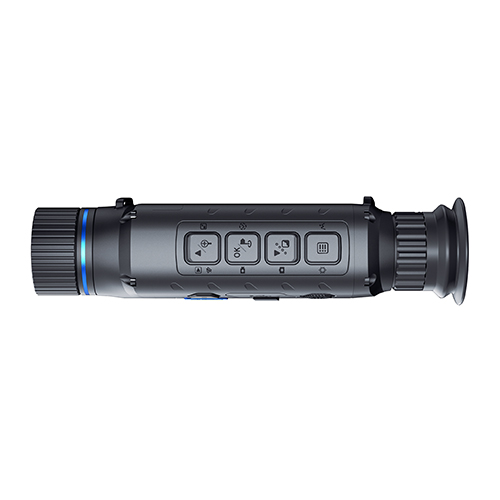

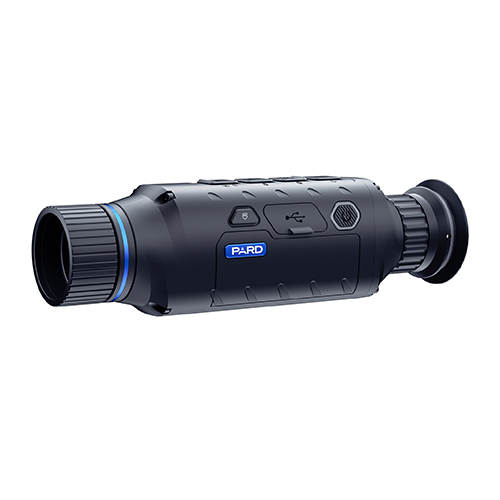

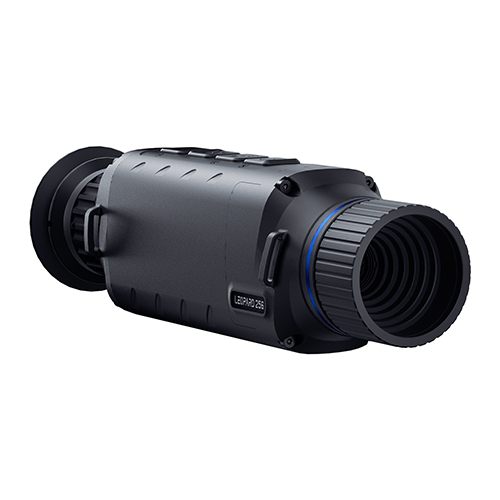

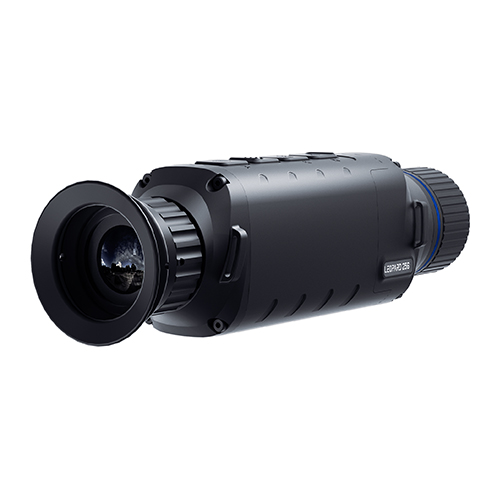

Model : Leopard 256
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(pixel) : 256*192
Pixel Size(µm) : 12*12
NETD : ≤25mK(0.025℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 500/800
Optics
Objective Lens(mm) : 11/16
Optical Magnification(x) : 2/2.9
Digital Zoom(x) : 2/4/6/8
Field of view
Horizontal : 15.9°/11°
Vertical : 12°/8.2°
Diagonal : 19.8°/13.7°
Eye Relief(mm) : 20
Diopter Adjustment(D) : -5~5
Display
Type : OLED
Resolution(pixel) : 1024*768
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel) : 1024*768
Photo Format : .JPG
Video Resolution(pixel) : 1024*768
Video Format : .MP4
Storage : Built-in EMMC (32 GB)
Image Engine : Pard IREA
code:
le2-11 ~ le2-16
