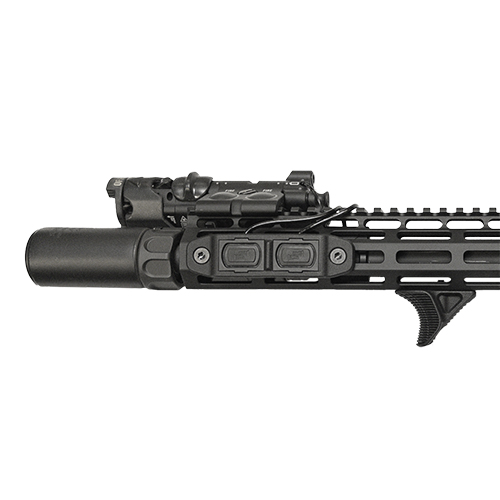

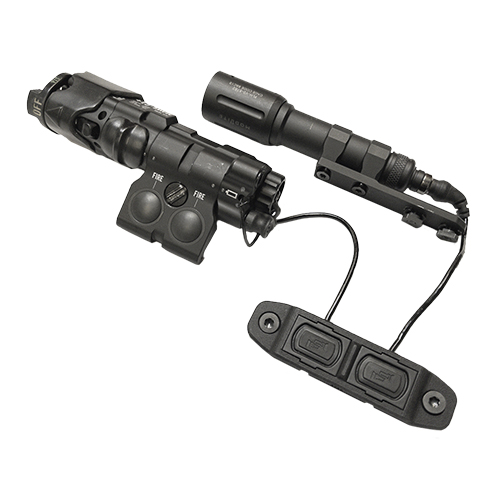

The Dual Button Lite M-LOK (DBL-M, or “double m”), offers end users a simple and secure means of mounting two Modbutton Lite Remote Switches to their handguards.
Utilizing the proven, low profile slip-over attachment method seen with the standalone Modbutton M-LOK mount, the DBL-M is constructed of a highly durable polymer and is available in two orientations: offset, and inline. This enables the end user to fully optimize their setup and orient the switches to match their specific needs. The ergonomic design also includes the addition of a center divider, allowing for clear and immediate tactile switch identification, on the fly.

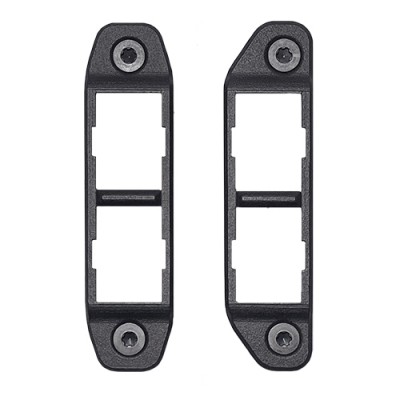

Orientation : Inline, Offset
Material : Nylon Polymer
Weight w/ Hardware
Inline: 0.46 oz (13 g)
Offset: 0.46 oz (13 g)
Torque : – 5 in/lbs – Do not over-torque
Dimensions

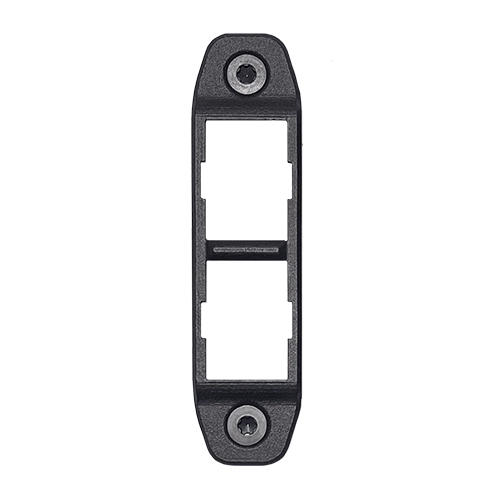

Inline:
L – 3.895 in. (98.933 mm)
W – 1.01 in. (25.654 mm)
H – .306 in. (7.772 mm) off of rail

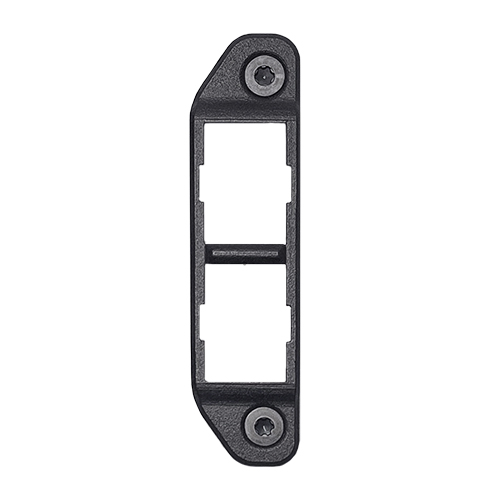

Offset:
L – 3.895 in. (98.933 mm)
W – 1.005 in. (25.527 mm)
H – .306 in. (7.772 mm) off of rail
Hardware Included :
2 x Magpul MLOK T-Nuts
2 x T25 Torx Flat Head Screws
code:
dbl-m-in ～ dbl-m-off
