D60V56GFML (MIL, Tactical, 0.05MIL adj)
The March GENESIS scope is no ordinary rifle scope. Traditional rifle scopes are designed and constructed with an internal assembly which moves the image of the reticle and field of view as the turrets are adjusted. For long range shooting, the FOV is shifted far enough off the centerline of the lenses that optical resolution is reduced. Unfortunately, it is at long ranges where the shooter needs the best clarity. Long range shooters often use MOA inclined rail below their scopes, not just to provide more elevation adjustment but to keep the reticle closer to the optical centerline of the lenses when sighted in at long range. In the GENESIS scope, the reticle remains fixed, so it is always optically centered within the internal lens assembly of the scope, thus maximizing optical clarity in all conditions.
Tactical Model (Non illuminated)
March "GENESIS" 6x-60x56mm with 114 Mil of total elevation travel without utilizing any external accessories.
Because of the supreme lens systems Genesis scope assembles and also because of the unique design of Genesis scope (the scope itself inclines) allowing the shooter to always see through the central part of the lens, it offers utmost clarity, definition, and minimal chromatic aberration even when extreme elevation is used on 114 MIL. Genesis March scopes have the highest image quality among all our scopes, not to mention the largest elevation travel amount. This scope can be used from 20 meters up to 3 miles (4827m).
・10X Zoom in FFP, MIL
・56mm objective lens
・Wide Field of View : 24.96 degrees
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 20m - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

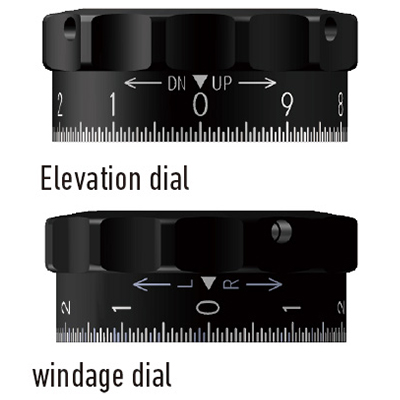

Dials
0.05 MIL Type (non-illuminated)
114 Mil of total elevation travel with Zero-set feature (100 Mil up, 14 Mil down)
40 Mil of total windage travel (20 Mil left and 20 Mil right)
10 Mil per turn on each turret. 0.05 Mil clicks
Technical Data(Low / High)
Magnification: 6x / 60x
Effective Lens Diameter: 56mm
Body Tube Diameter: --
Exit Pupil: 3.5mm (0.14inch) / 0.93mm (0.04inch)
Field of View (real)
degree: 4.16° / 0.416°
ft/100yd: 21.8ft / 2.2ft
m/100m: 7.26m / 0.73m
Eye Relief: 67-82mm (2.64-3.23inch) / 63-82.5mm (2.48-3.25inch)
1 Click Adjustment: 0.05MIL
Elevation Travel: 114MIL
Windage Travel: 40MIL
Focus Distance: 20m - infinity

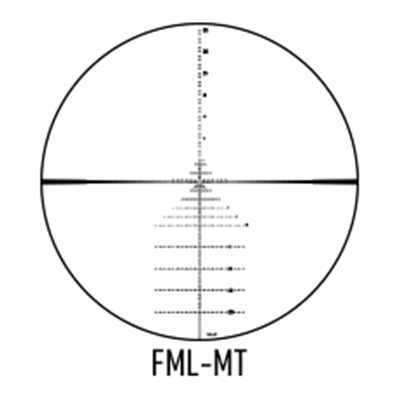

Reticle: FML-MT (Non illuminated) / FML-TR1 / FML-3
In the box: Flip Caps (Objective and Eyepiece) / MD disk / Sunshade / Lens Cloth / Fast Lever / Eyepiece rubber / Mount / Mount spacer / Hex wrench
Weight: 1,450g (51.15oz)
code:
d60v56gfml-fml3 ～ d60v56gfml-fmltr1
