D40V52GFIML (MIL, Tactical, Illumi, 0.05MIL adj)
The March GENESIS scope is no ordinary rifle scope. Traditional rifle scopes are designed and constructed with an internal assembly which moves the image of the reticle and field of view as the turrets are adjusted. For long range shooting, the FOV is shifted far enough off the centerline of the lenses that optical resolution is reduced. Unfortunately, it is at long ranges where the shooter needs the best clarity. Long range shooters often use MOA inclined rail below their scopes, not just to provide more elevation adjustment but to keep the reticle closer to the optical centerline of the lenses when sighted in at long range. In the GENESIS scope, the reticle remains fixed, so it is always optically centered within the internal lens assembly of the scope, thus maximizing optical clarity in all conditions.
Tactical Model (Illuminated)

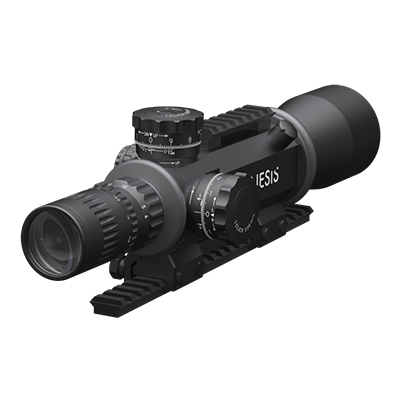

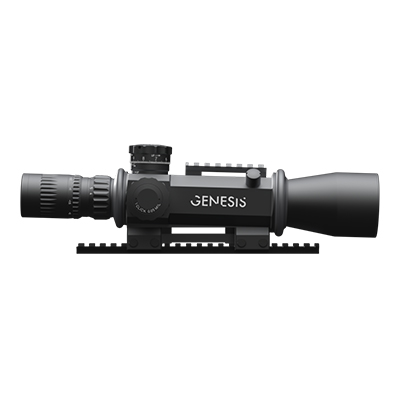

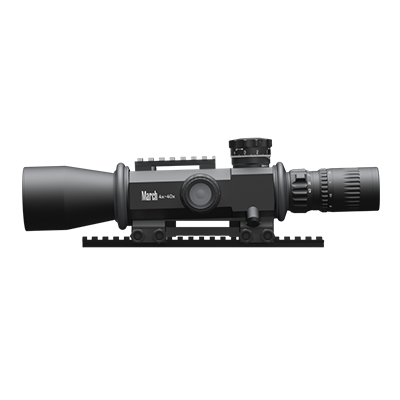

March "GENESIS" 4x-40x52mm with 86 Mil of total elevation travel.
GENESIS scope will extend the accuracy capability of modern rifles without the need for modifications including inclined rails, adjustable mounts, or prism systems. It took us many years to develop this Genesis scope which is globally unique and the first in the history. 4-40x52 Genesis scope is capable of engaging targets from 20 meters up to 3 miles (4827m) subject to rifle system, ammunition, and environmental conditions without compromising image quality and without utilizing any external accessories. There is no requirement for additional, bulky and expensive additions. The unique design of Genesis scopes (the scope itself inclines) allow the shooter to always see through the central part of the lens producing clarity, definition, and minimal chromatic aberration even when at extreme elevation. You can achieve a perfect IQ throughout all the magnification range and elevation travel.
・10X Zoom in FFP, MIL
・52mm objective lens
・Wide Field of View : 24 degrees
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 20m - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・6 level illumination module
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

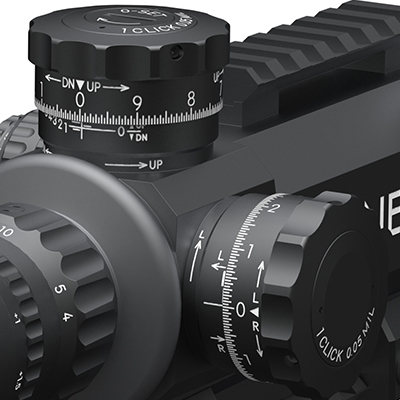

Dials
0.05 MIL Type
86 Mil of total elevation travel with Zero-set feature (72Mil up, 14 down)
28 Mil of total windage travel (14 Mil left and right)
10 Mil per turn
*We also have 4-40x52 in 0.1MIL click and 1/4MOA available.
Technical Data(Low / High)
Magnification: 4x / 40x
Effective Lens Diameter: 52mm
Body Tube Diameter: --
Exit Pupil: 3.1mm (0.12inch) / 1.3mm (0.05inch)
Field of View (real)
degree: 6° / 0.6°
ft/100yd: 31.5ft / 3.2ft
m/100m: 10.5m / 1.05m
Eye Relief: 68-86mm (2.68-3.39inch) / 71-85mm (2.80-3.35inch)
1 Click Adjustment: 0.05MIL
Elevation Travel: 86MIL
Windage Travel: 28MIL
Focus Distance: 20m - infinity

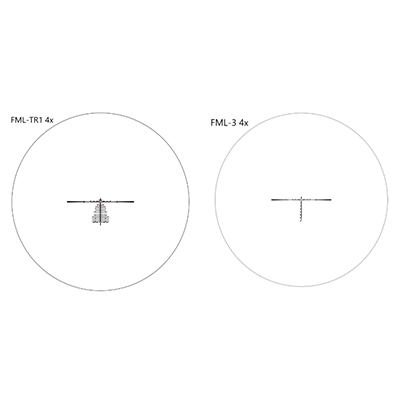

Reticle: FML-TR1 / FML-3
In the box: Flip Caps (Objective and Eyepiece) / MD disk / Sunshade / Lens Cloth / Fast Lever / Eyepiece rubber / Mount / Mount spacer / Hex wrench
Weight: 1280g(45.14oz)
code:
d40v52gfiml-fml3 ～ d40v52gfiml-fmltr1
