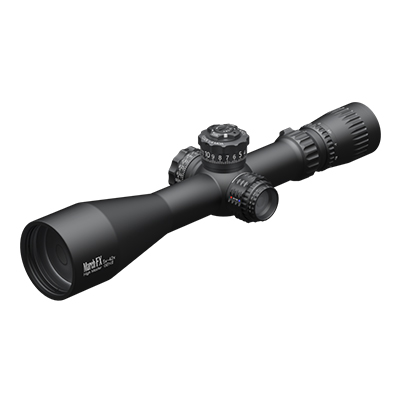

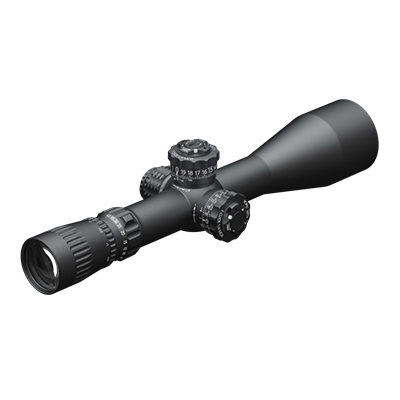

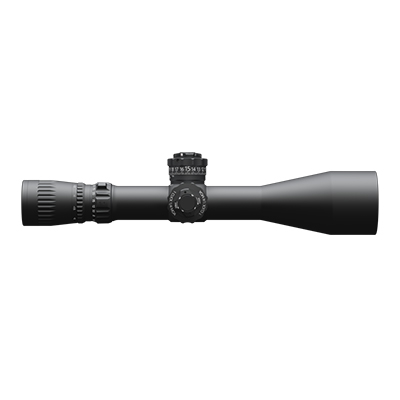

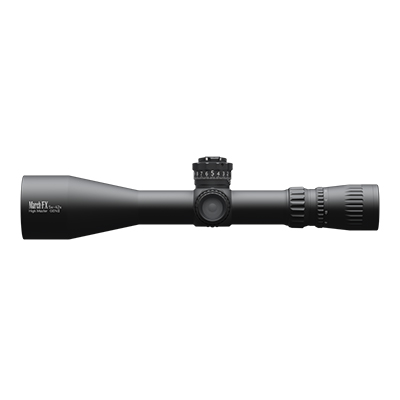

D42HV56WFIMAX-G2 (MOA, Tactical, Illumi, Shuriken lock)
Has eight magnification ratios, including the highest magnification ratio in the first focal plane (FFP) configuration rifle scope made to date. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration. This scope was designed to eliminate optical aberration without compromise, utilizing high-end extra-low dispersion (ED) lenses.
Tactical Model (Illuminated)
March -FX Wide Angle 5-42x56mm Genll in MOA
This 5-42x56mm Genll scope is developed for serious competition shooters, enthusiasts and hunters who demand the utmost in optical/mechanical performance. 5-42x56mm has the widest angle eyepiece among all March Scopes 26° (30% more than our standard models) offering enhanced FOV throughout the 8. 4x magnification range.
(*NOTE)
Shuriken lock turrets which is a standard for illuminated 5-42x56 Genll can be replaced with writable turrets for a custom fee when placing a new order.
Features of the D42HV56WFIMAX-G2
・8.4X Zoom in FFP, MOA
・34mm diameter body
・56mm objective lens
・Wide Angle eyepiece : 26 degrees
・Temperature Anti-Drift Lens System
・High Master lens system (Super ED lenses)
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability

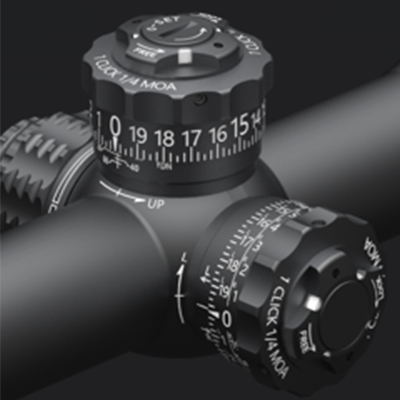

・Shuriken lock Elevation and Windage turrets
・Lockable Side focus turrets
・Fast focus eyepiece
・6 level illumination module
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating
Dials
1/4MOA Type
1 Click Adjustment : 1/4MOA
25 MOA per 1turn
0-set on Elevation turret
Technical Data(Low / High)
Magnification: 5x / 42x
Effective Lens Diameter: 56mm
Body Tube Diameter: 34mm
Exit Pupil: 5.0mm (0.20inch) / 1.33mm (0.05inch)
Field of View (real)
degree: 5.0° / 0.62°
ft/100yd: 26.2ft / 3.3ft
m/100m: 8.73m / 1.08m
Eye Relief: 73-88mm (2.87-3.46inch) / 69-90mm (2.72-3.54inch)
1 Click Adjustment: 1/4MOA
Elevation Travel: 130MOA
Windage Travel: 48MOA
Focus Distance: 10m - infinity

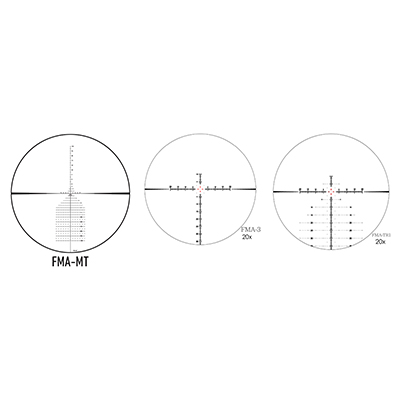

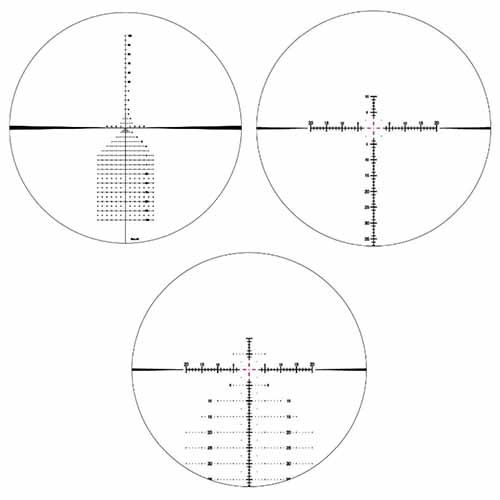

Reticle: FMA-MT / FMA-TR1 / FMA-3
In the box: Flip Caps (Objective and Eyepiece) / Sunshade / Lens Cloth / Fast Lever / MD disk / Hex wrench
Weight: 1015g(35.80oz)
code:
d42hv56wfimax-g2-fma3 ～ d42hv56wfimax-g2-fmatr1
