D40V56FIML-G2 (MIL, Tactical, Illumi, 0.05MIL adj, Lock, Genll)
Has eight magnification ratios, including the highest magnification ratio in the first focal plane (FFP) configuration rifle scope made to date. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration. This scope was designed to eliminate optical aberration without compromise, utilizing high-end extra-low dispersion (ED) lenses.
Tactical Model (Illuminated)
March-FX 5-40x56 Genll
Generation ll of a hot seller and all time favorite 5-40x56 Scope with precise 0.05MIL click adjustment. 5-40x56Genll is an ultimate scope for serious competition shooters, enthusiasts and hunters who demand the utmost in optical/mechanical performance.
・8X Zoom in FFP
・34mm diameter body
・56mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・6 level illumination module
Added features in 5-40x56 Genll from the original 5-40x56 are;
・Lockable Elevation and Windage turrets
・Fast focus eyepiece
・6 level illumination module

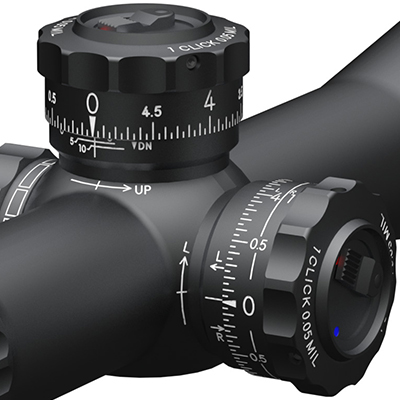

Dials
0.05 MIL Type
0.05MIL Adj.dials with 0-Set
One turn of both adjustment dials is 5MIL and one click value is 0.05MIL.
Technical Data(Low / High)
Magnification: 5x / 40x
Effective Lens Diameter: 56mm
Body Tube Diameter: 34mm
Exit Pupil: -- / 1.4mm (0.06inch)
Field of View (real)
degree: 4.0° / 0.5°
ft/100yd: 21.0ft / 2.6ft
m/100m: 6.98m / 0.87m
Eye Relief: 96-100mm (3.78-3.94inch) / 92-98mm (3.62-3.86inch)
1 Click Adjustment: 0.05MIL
Elevation Travel: 24MIL
Windage Travel: 12MIL
Focus Distance: 10yd - infinity

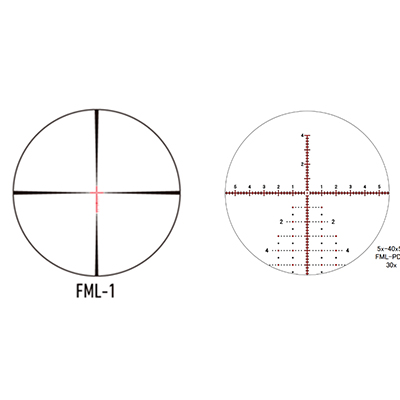

Reticle: FML-1 / FML-PDKI
In the box: Flip Caps (Objective and Eyepiece) / Sunshade / Lens Cloth / Fast lever / MD disk / Hex wrench
Weight: 925g (32.62oz)
code:
d40v56fiml-g2-fml1 ～ d40v56fiml-g2-fmlpdki
