Has eight magnification ratios, in the first focal plane (FFP) configuration rifle scope. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration.
Tactical Model (Illuminated)

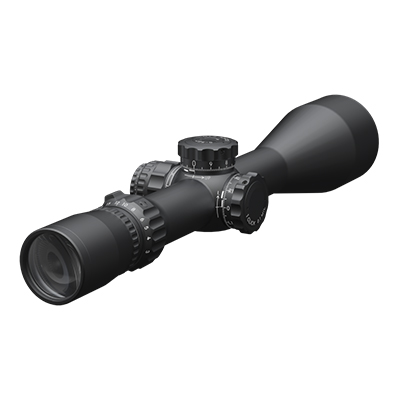

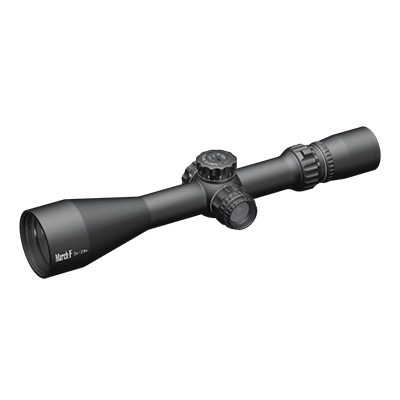

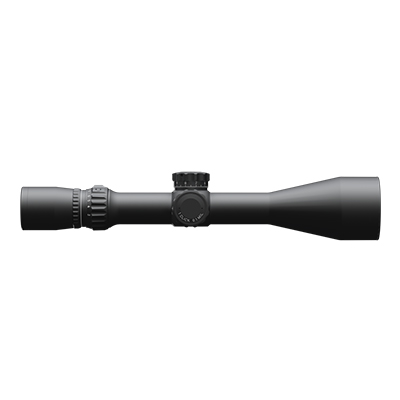

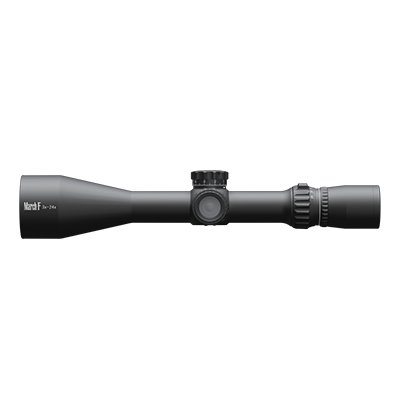

March-F 3-24x52mm
Compact and lightweight scope perfect for hunting and general shooting.
・8X Zoom in FFP, MIL
・ED Glass
・30mm diameter body
・52mm objective lens
・Side focus 10 yard - infinity
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

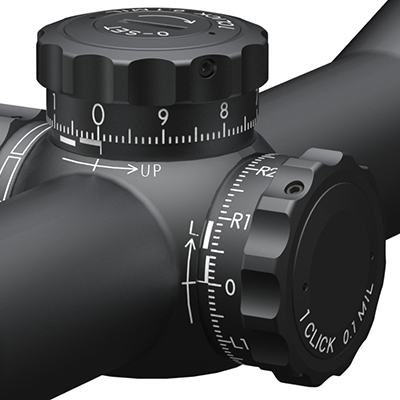

Dials
0.1 MIL Type
1 click adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on Elevation turret
Technical Data(Low / High)
Magnification: 3x / 24x
Effective Lens Diameter: 52mm
Body Tube Diameter: 30mm
Exit Pupil: -- / 2.17mm (0.09inch)
Field of View (real)
degree: 6.67° / 0.83°
ft/100yd: 35.0ft / 4.3ft
m/100m: 11.66m / 1.45m
Eye Relief: 85-100mm (3.35-3.94inch) / 89-96mm (3.5-3.78inch)
1 Click Adjustment: 0.1MIL
Elevation Travel: 34MIL
Windage Travel: 17MIL
Focus Distance: 10yd - infinity

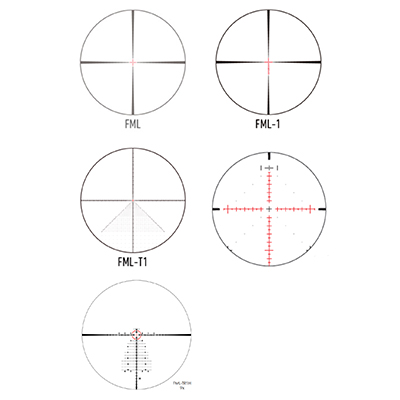

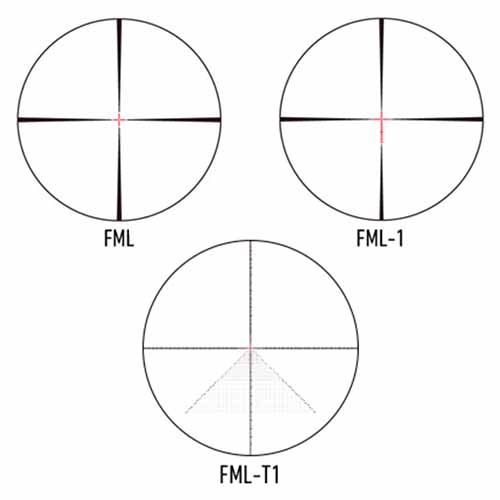

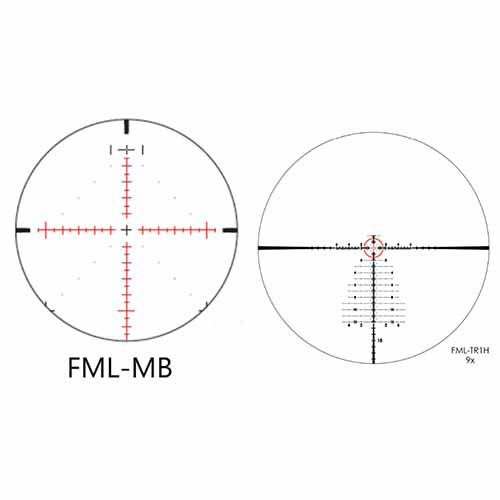

Reticle: FML / FML-1 / FML-T1 / FML-TR1H / FML-MB
In the box: Flip Caps (Objective and Eyepiece) / Sunshade / Lens Cloth / Fast Lever / Hex wrench / MD disk
Weight: 680g (23.99oz)
code:
d24v52fiml-fml ～ d24v52fiml-fmlmb
