D10SV24FDIML-P (Dual, MIL, Tactical, Illumi, Package)
Has eight magnification ratios, in the first focal plane (FFP) configuration rifle scope. The mrad reticle scale value remains constant across the entire zoom range. It is easy to range the target without thinking where to set the zoom range. Additionally, with the capability to set any position as the zero point in elevation (0-set device), the shooter will never lose his starting calibration.
Tactical Model (Illuminated)

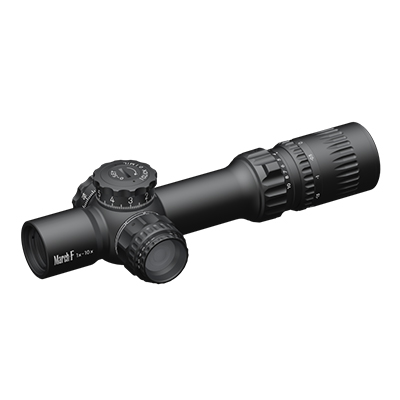

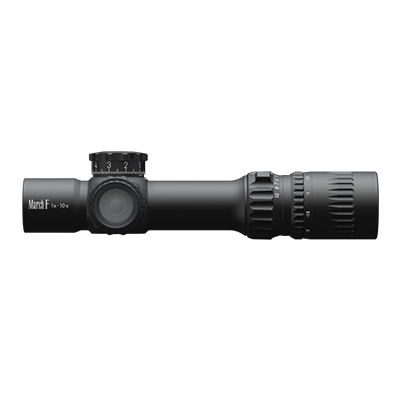

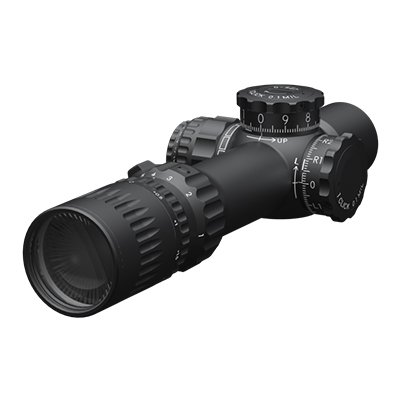

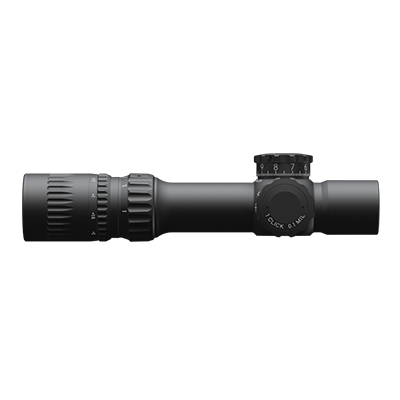

March-F 1-10x24mm Shorty Riflescope Package with standard custom unimount and sunshade
(*Extra accessory top and rail will not be included in the unimount.)
・10X Zoom in FFP, MIL
・30mm diameter body
・24mm objective lens
・Focus from 10 yard to infinity
・Dual reticle (best of both FFP and SFP reticles)
・Daylight bright fiber dot illumination
・Scope body fully machined from aluminum ingot
・All Japanese metal parts with no plastic part except for minimum essentials such as an insulator
・Argon gas filled for internal stability
・Fast focus eyepiece
・6 level illumination module
・Top quality multi lens coating where the transmittance is very near 100%
・Water repellent lens coating

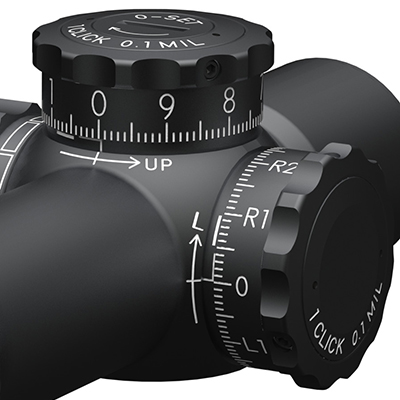

Dials
0.1 MIL Type
1 click adjustment : 0.1MIL (1cm @100m)
10 MIL turret revolution (100cm @100m)
0-set on Elevation turret
Technical Data (Low / High)
Magnification: 1x / 10x
Effective Lens Diameter: 24mm
Body Tube Diameter: 30mm
Exit Pupil: 8.6mm (0.34inch) / 2.4mm (0.094inch)
Field of View (real) (degree): 19.2° / 1.92°
Field of View (real) (ft/100yd): 101.5ft / 10.1ft
Field of View (real) (m/100m): 33.83m / 3.35m
Eye Relief: 72‐102mm / 75‐100mm
1 Click Adjustment: 0.1MIL
Elevation Travel: 56Mil
Windage Travel: 56Mil
Focus Distance: 10yd - infinity

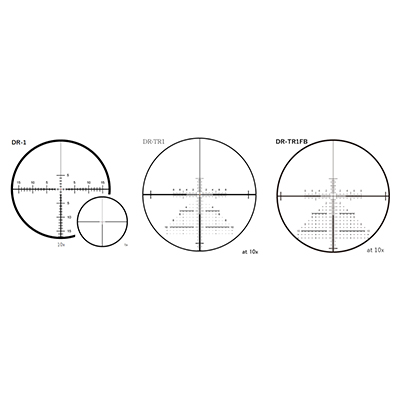

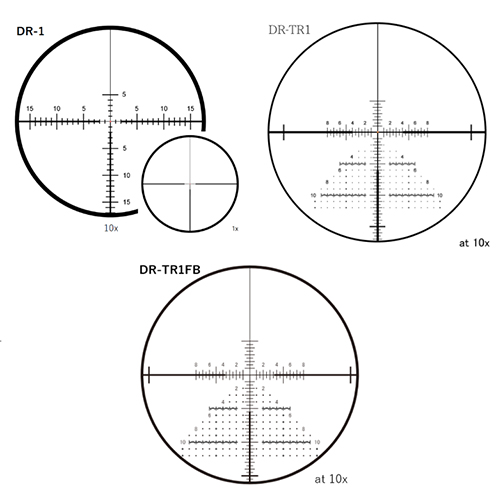

Reticle: DR‐1 / DR-TR1 / DR‐TR1FB
In the box: Flip caps (Objective lens, Eyepiece) / Fast lever / Lens cloth / Hex key / Sunshade / Custom unimount
Weight: 505g (17.8oz)
code:
d10sv24fdiml-p-dr1 ～ d10sv24fdiml-p-drtr1
