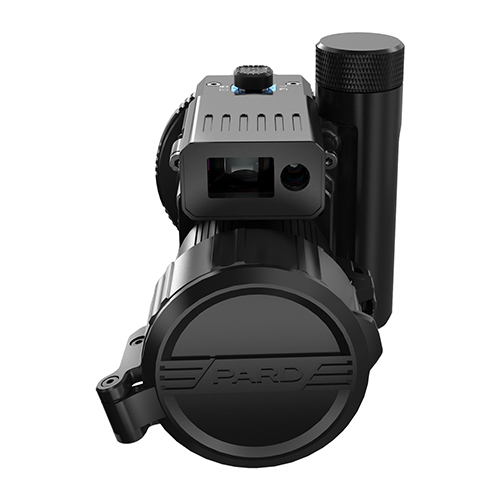

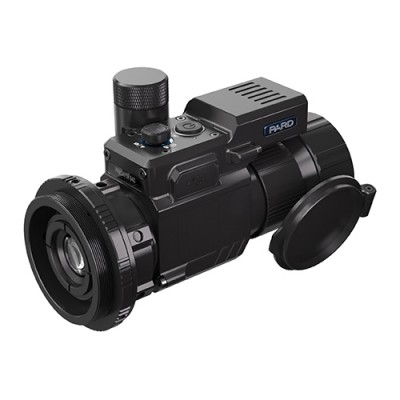

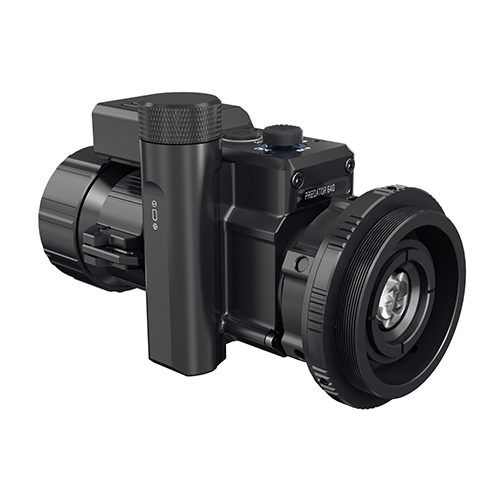

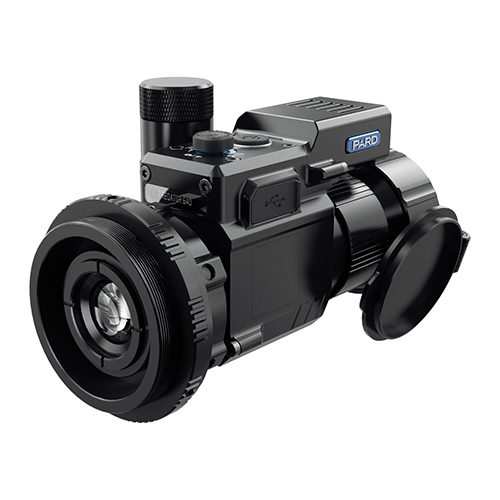

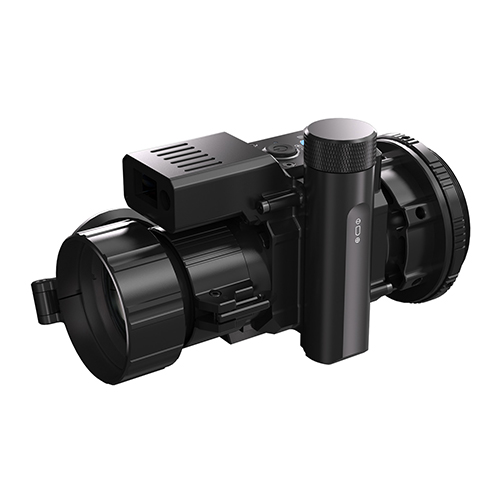

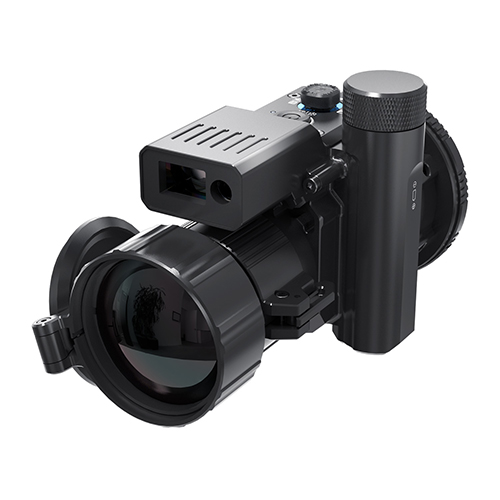

Model : Predator 480 / Predator 640
Classification : Thermal Imaging Clip-on
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 480*360 / 640*512
Pixel Size(µm) : 12*12
NETD : ≤20mK(0.02℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 1400 / 2100
Optics
Objective Lens(mm) : 35 / 45
Optical Magnification(x) : 1 / 1
Digital Zoom(x) : N/A
Field of view (HxV)
Horizontal : 9.4° / 11.0°
Vertical : 7.1° / 8.8°
Diagonal : 11.8° / 14.0°
Display
Type : OLED
Resolution(px) : 1920*1080
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) : 1440*1080
Photo Format : .JPG
Video Resolution(px) : 1440*1080
Video Format : .mp4
Storage : Micro SD card (Max. 128GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : 1000m/1200yd
Ballastic Caculator : No
PIP : No
Self-motivated Recording : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 18650*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤5
External Power Supply : USB Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
Measurement
Product Dimension(L x W x H, mm) : 140*60*78
N.W/pcs(with/without battery, g) : 424
code:
pr4-35/lrf ～ pr6-45/lrf
