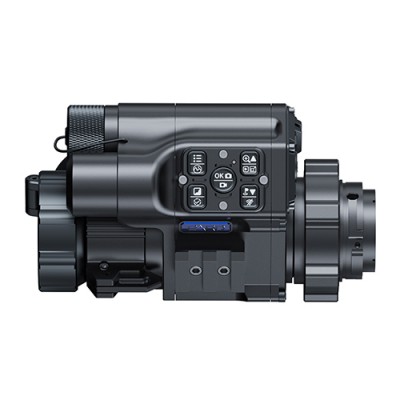

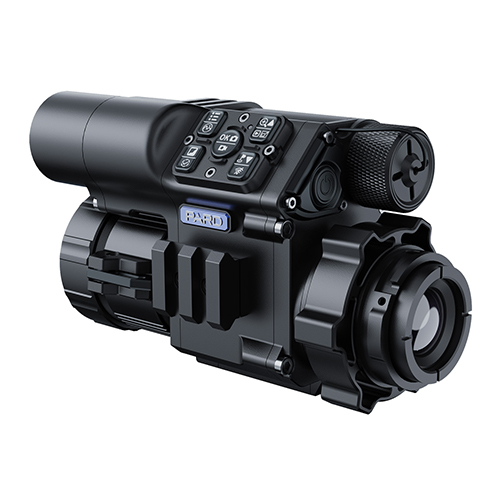

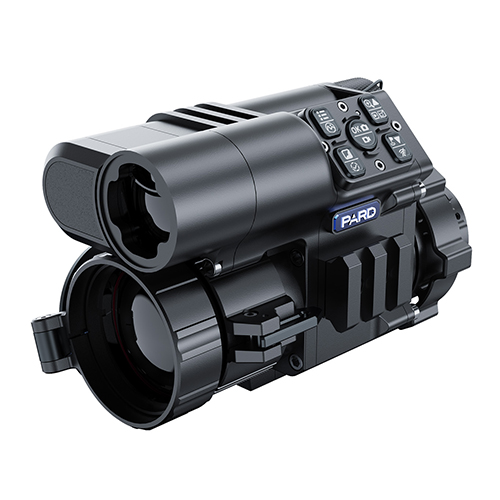

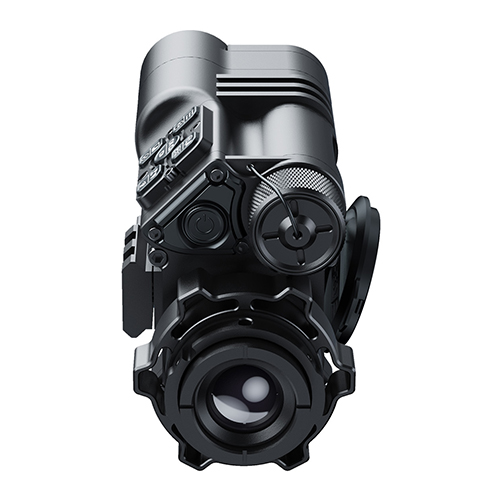

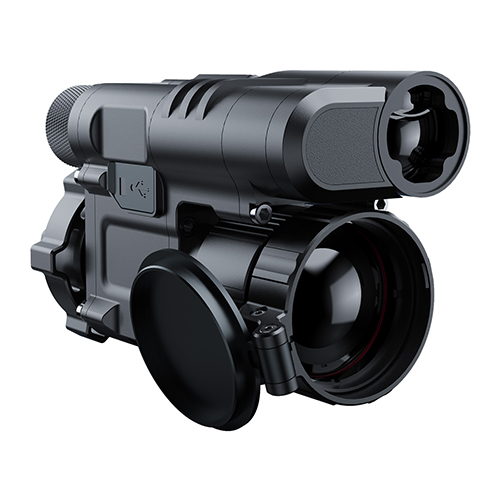

Model : FT32/FT32-LRF
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(pixel) : 384*288
Pixel Size(µm) : 12*12
NETD : ≤25mK(0.025℃)
Frame Rate(Hz) : 50
Human Detection Distance(m) : 1400
Vehicle Detection Distance(m) : 2600
Optics
Purpose : RifleScope/Monocular / Clip-on
Objective Lens(mm) : 35
Optical Magnification(x) : 3.5 / 1
Digital Zoom(x) :
2/4/6/8
N/A
Field of view (HxV)
Horizontal : 7.5°
Vertical : 5.6°
Diagonal : 9.4°
Eye Relief(mm) : 30 / N/A
Diopter Adjustment(D) :
- 5~+5
N/A
Display :
Purpose :
RifleScope/Monocular
Clip-on
Type : OLED
Resolution(pixel) : 1440*1080
Reticle Style :
6
N/A
Reticle Color :
Red/White/Yellow/Green
N/A
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel) : 2592*1944
Photo Format : .jpg
Video Resolution(pixel) : 1024*768
Video Format : .mp4
Storage(GB) : TF card(Max. 128)
Image Engine : Pard IREA
Main function
Purpose :
RifleScope/Monocular
Clip-on
LRF Detection Range(m) : 1000
Ballistic Calculator :
Yes
N/A
PIP :
Yes
N/A
Recoil-motivated Recording : Yes
Loop Recording : Yes
Shutter : Mechanical Shutter
Microphone : Yes
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
WiFi : Yes
Supported Apps : PardVision
Power Supply
Battery Type : Li-ion 18650
Output Voltage(V) : 3.7
Operating Time(h) : ≤5
External Power Supply : Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp.(℃/℉) : -20~50/-4~122
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
Measurement
Product Dimension(L x W x H, mm) :
FT32 with eyepiece 142*60*77; FT32 with adapter 154*79*82
FT32-LRF with eyepiece 150*60*80; FT32-LRF with adapter 165*79*84
N.W/pcs(without battery, g) :
FT32 with eyepiece 370 FT32 with adapter 480
FT32-LRF with eyepiece 410 FT32-LRF with adapter 520
code:
ft32-35
