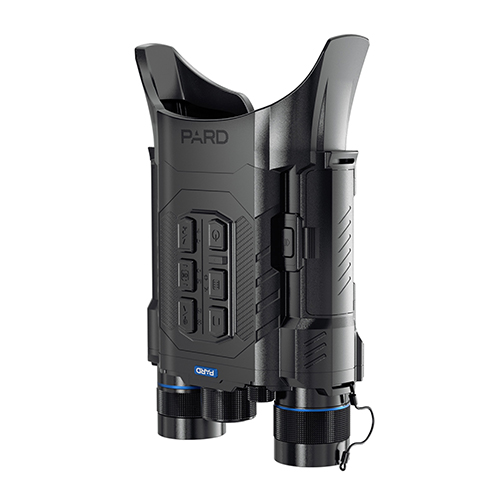

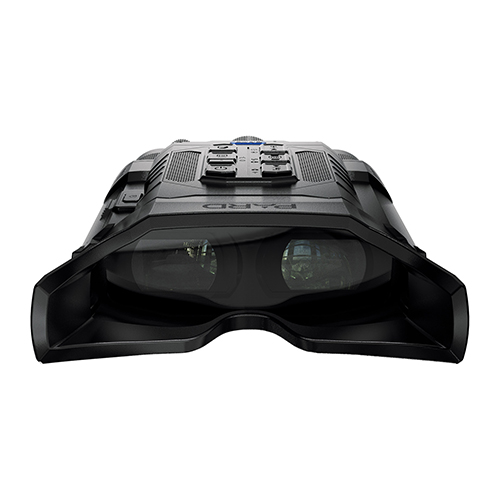

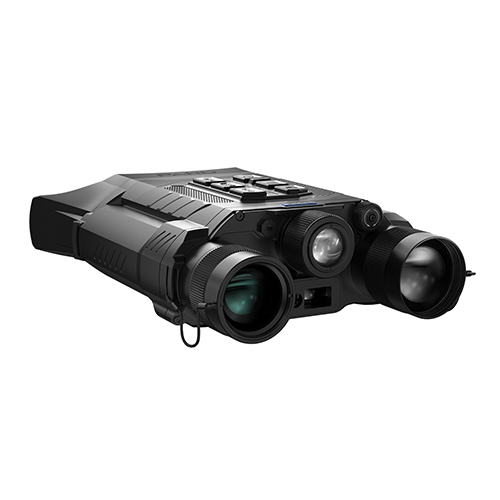

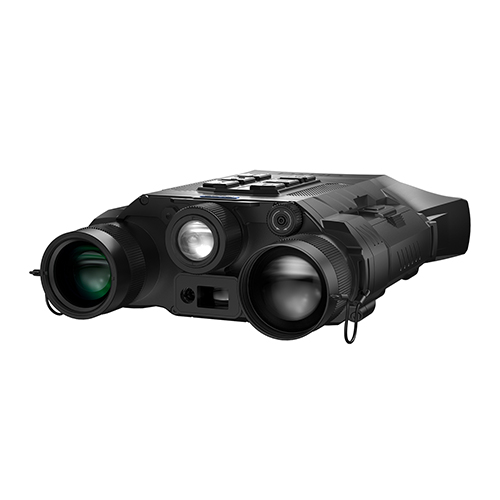

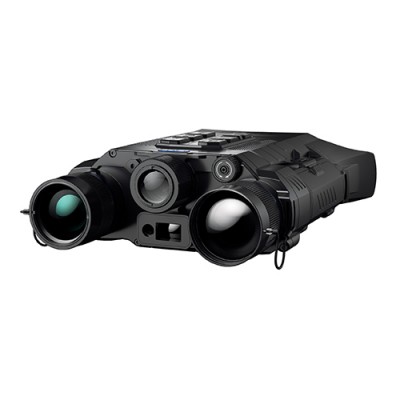

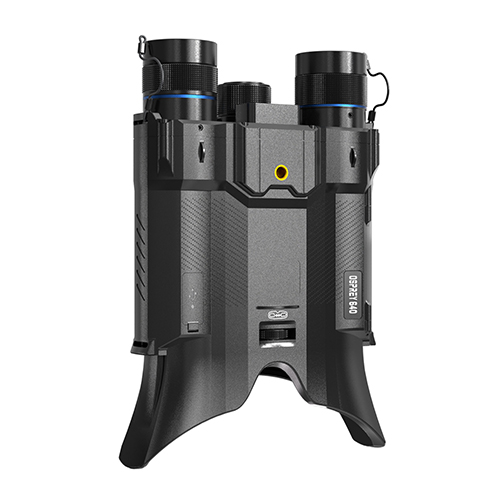

Model : Osprey 480 / Osprey 640
Classification : Binocular
Thermal Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 480*360 / 640*512
Pixel Size(µm) : 12*12
NETD : ≤20mK(0.02℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 1800
Objective Lens(mm) : 35
Optical Magnification(x) : 2.4 / 1.8
Digital Zoom(x) : 2/4/6/8
Field of view (HxV)
Horizontal : 9.4° / 12.5°
Vertical : 7.1° / 10.0°
Diagonal : 11.8° / 16.0°
Focus Range : 3m-∞
Visible Light Sensor
Resolution(px) : 2688*1520
Pixel Size(µm) : 2.9
Sensitivity(lux) : 0.001
Frame Rate(Hz) : Color:60/Mono:30
Objective Lens(mm) : 50
Optical Magnification(x) : 3.5
Digital Zoom(x) : 2/3
Field of view (HxV)
Horizontal : 6.4°
Vertical : 4.8°
Diagonal : 8°
Focus Range : 3m-∞
Display
Type : LCD
Resolution(px) : 640*480
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(px) : Thermal: 2048*1536/Night Vision: 2048*1536
Photo Format : .JPG
Video Resolution(px) : Thermal: 1024*768/Night Vision: 1920*1440
Video Format : .mp4
Storage : Micro SD card (Max. 128GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : 1000m/1200yd
PIP : Yes
Gyroscope : Yes
Microphone : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Firmware Upgrade : Yes
IR Illuminator
IR Power(W) : 5
IR Illuminating Level : 3 Levels
IR Wavelength(nm) : 850/940
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 21700*1
Output Voltage(V) : 3.7
Operating Time(h) : ≤6
External Power Supply : USB Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Material
Objective Lens : All-glass multi-coated len
Measurement
Product Dimension(L x W x H, mm) : 220*137*58
N.W/pcs(with LRF&battery, g) : 704.5
code:
os4-35/50/850/lrf ～ os6-35/50/940/lrf
