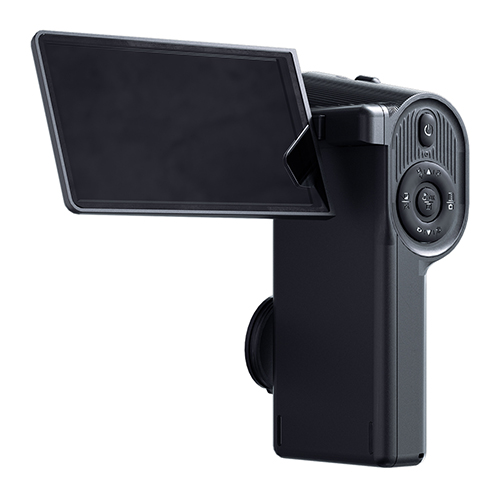

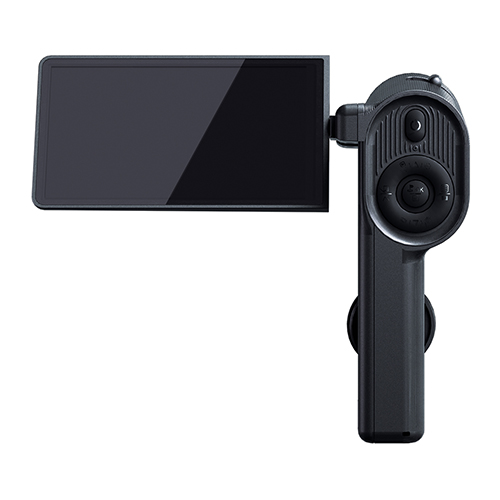

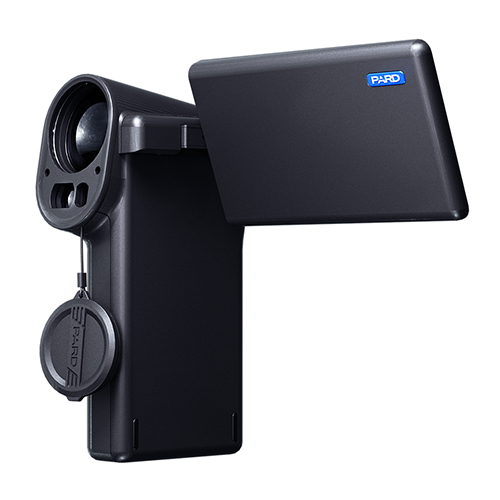

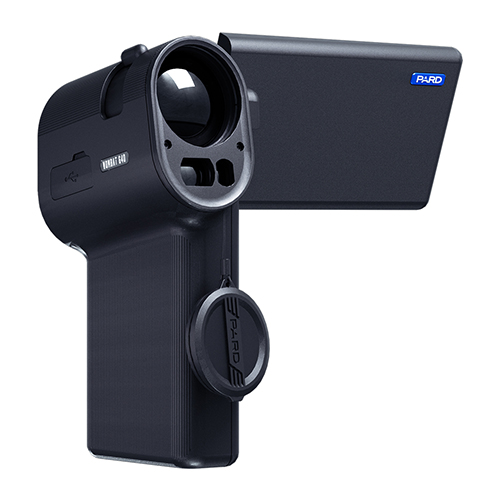

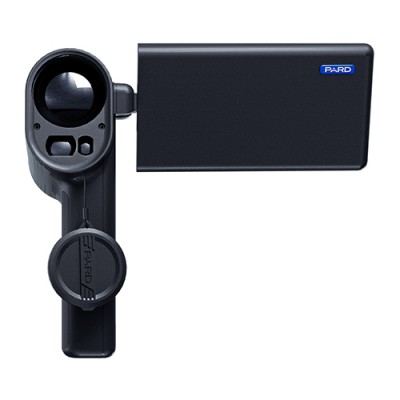

Model : Wombat 480 / Wombat 640
Classification : Thermal Imaging Handheld
Sensor :
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 480*360 / 640*512
Pixel Size(µm) : 12*12
NETD : ≤18mK(0.018℃)
Frame Rate(Hz) : 50
Detection Distance(m) : 1200/1800
Optics :
Objective Lens(mm) : 25/35
Optical Magnification(x) : 1.7/2.4 / 1.3/1.8
Digital Zoom(x) : 2/4/6/8
Field of view (HxV) Horizontal : 13.1°/9.4° / 17.5°/12.5°
Vertical : 9.9°/7.1° / 14.0°/10.0°
Diagonal : 16.4°/11.8° / 22.3°/16.0°
Field of view (m @100m) Horizontal : 23/16.5 // 30.7/21.9
Vertical : 17.3/12.3 / 24.6/17.6
Focus Range : 3m-∞
Diopter Adjustment(D) : ±5
Display :
Type : LCD
Resolution(px) : 1280*720
Image Mode : WT-HOT/BK-HOT/H-light/RD-HOT/IN-HOT/SKY
Photo / Video :
Photo Resolution(px) : 1280*720
Photo Format : .JPG
Video Resolution(px) : 1280*720
Video Format : .mp4
Main function :
LRF : 1000m
Compass : Yes
PIP : Yes
Auto Recording : Yes
Loop Recording : Yes
Time Stamp : Yes
Record Audio : Yes
Storage(GB) : Micro SD card (Max. 128GB)
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Custom soft pack battery
Operating Time(h) ≤8
External Power Supply : USB Type-C
Material
Housing AL6061 & Composite
Objective Lens All-glass multi-coated lens
Measurement
Product Dimension(with LRF, L * W * H, mm) 55*80*150
N.W/pcs(with battery, g) 482
code:
wo4-25/lrf ～ wo6-35/lrf
