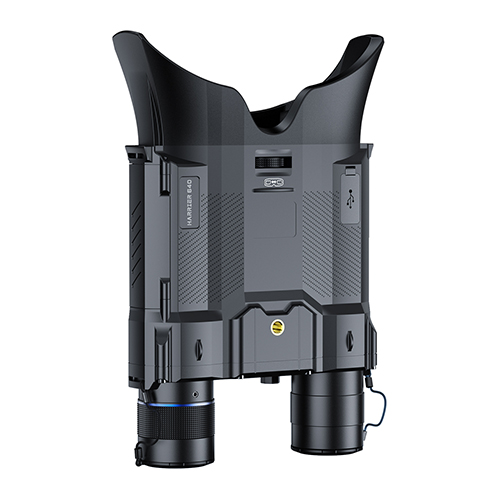

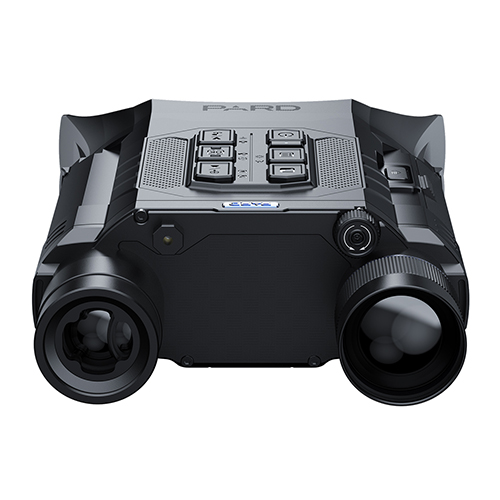

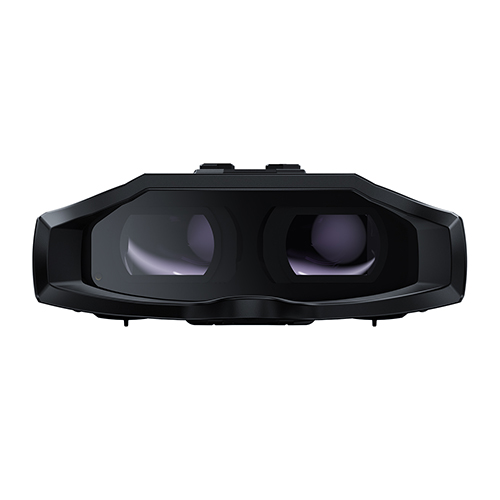

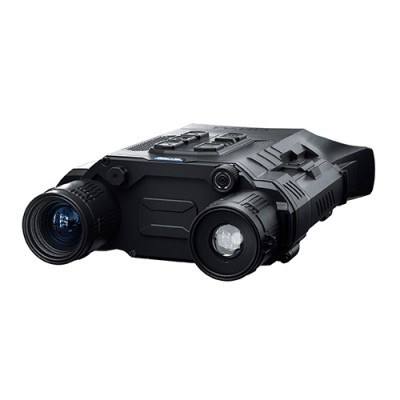

Model : Harrier 480 / Harrier 640
Classification : Binocular
Sensor
Type : Uncooled VOx(vanadium oxide)
Resolution(px) : 480*360 / 640*512
Pixel Size(µm) : 12*12
NETD : ≤20mK(0.025°C)
Frame Rate(Hz) 50
Detection Distance(m) : 1800 / 1800
Optics
Objective Lens(mm) : 35 / 35
Optical Magnification(x) : 2.4 / 1.8
Digital Zoom(x) : 2/4/6/8
Field of view (HxV)
Horizontal : 9.4° / 12.5°
Vertical : 7.1° / 10.0°
Diagonal : 11.8° / 16.0°
Focus Range : 3m-∞
Eye Relief(mm) : 25
Diopter Adjustment(D) : -5~3
Display
Type : LCD
Resolution(px) : 640*480
Scene Mode : City/Rain/Forest
Image Mode : WT-HOT,BK-HOT,EDGE,RD-HOT,IN-HOT,SKY
Photo / Video
Photo Resolution(px) : 2048×1536
Photo Format : .JPG
Video Resolution(px) : 1024*768
Video Format : .mp4
Storage : Micro SD card (Max. 128GB)
Image Engine : Pard IREA
Main function
LRF Detection Range(m/yds) : 1000m/1200yd
Ballastic Caculator : Yes
PIP : Yes
Hot Track : Yes
Gyroscope : Yes
Recoil-activated Recording : Yes
Loop Recording : Yes
E-compass : Yes
Shutter : Mechanical shutter
Firmware Upgrade : Yes
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : Lithium Ion 21700*1
Output Voltage(V) 3.7
Operating Time(h) : ≤8
External Power Supply : USB Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : -30 ~ +55 / -22 ~ +131
Recoil Resistance(J) 6000
Material
Objective Lens : All-glass multi-coated lens
Measurement
Product Dimension(mm) : 220*137*58
N.W/pcs(with LRF&battery, g) : 553.5
code:
ha4-35/lrf ～ ha6-35/lrf
