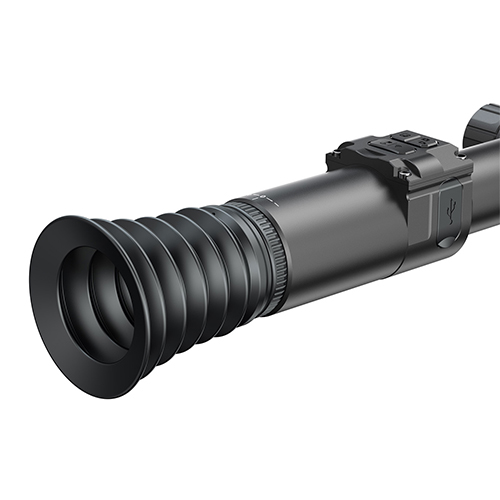

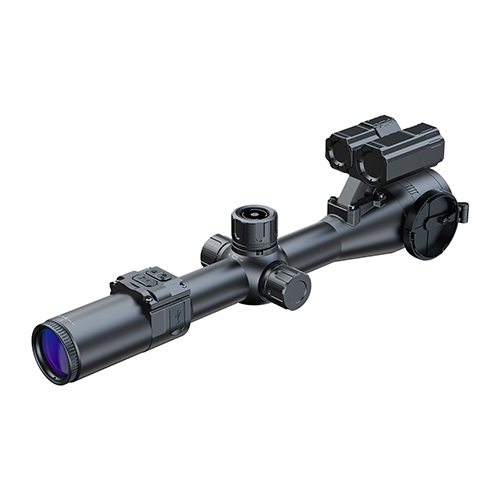

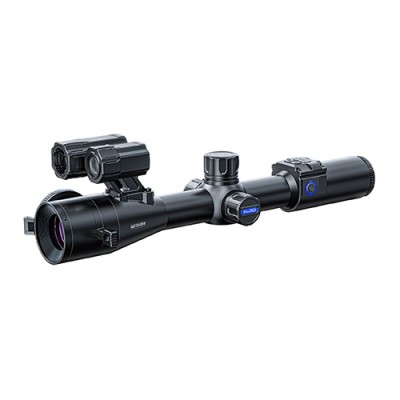

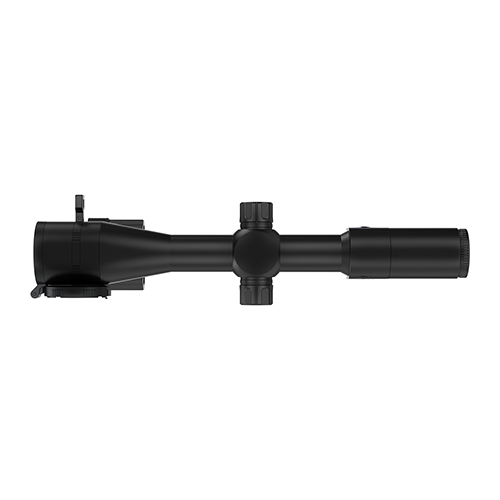

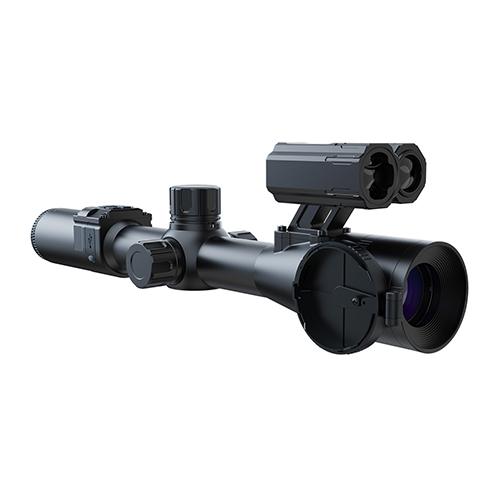

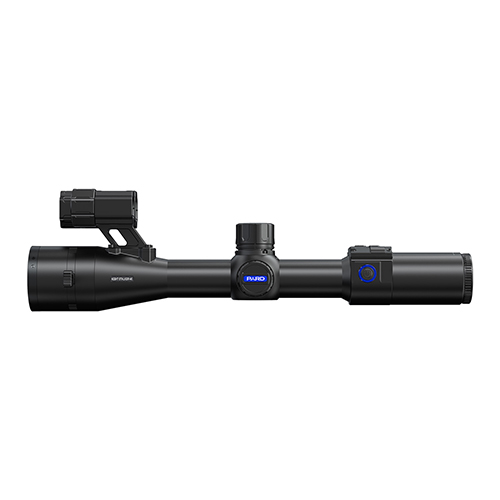

Model : Night Stalker 4K
Sensor
Resolution(pixel) : 3840*2160
Pixel Size(μm) : 2
Sensitivity(lux) : 0.001
Frame Rate(Hz) : 30
Image Engine : PARD VLEA
Optics
Objective Lens(mm) : 50/70/100
Optical Magnification(x) : 4/5.6/8
Digital Zoom(x) : 2002/3/4
Field of view (HxV) (Horizontal) : 4.6º/3.3º/2.3°
(Vertical) : 4.6º/3.3º/2.3°
(Diagonal) : 6.5º/4.6º/3.2°
Focus Range : 5m-∞
Eye Relief(mm) : 100
Exit Pupil(mm) : 10
IR Illuminator
IR Type : VCSEL
IR Power : 5W
IR Illuminating Level : 3 Levels
IR Distance(m) : 350
IR Wavelength(nm) : 850/940
Display
Type : IPS
Resolution(pixel) : 800*800
Reticle Style : 6
Reticle Color : Red/white/yellow/green
Color Mode : Color/Mono BW/Mono Green/Mono Yellow
Photo / Video
Photo Resolution(pixel) : 3840*2160
Photo Format : .JPG
Video Resolution(pixel) : 1920*1080
Video Format : .mp4
Storage(GB) : Micro SD Card (128GB, Max)
Main function
PIP : Yes
LRF Detection Range(m/yd) : 1000/1200 (LRF Version)
Ballastic Caculator : Yes
Range Unit Selection : meter/yard
Gyroscope : Yes
Recoil-activated Recording : Yes
Auto Recording : Yes
Loop Recording : Yes
Time Stamp : Yes
Record Audio : Yes
Beep Sound : Yes
Exposure Compensation : Yes
Connections
USB Type-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
External Power Supply(V)
Battery Type : Lithium Ion18650*1
Output Voltage(V) : 3.7
Operating Time(h, max) : 5
External Power Supply(V) : USB Type-C
Environmental characteristic
Protection Class : IP67
Operating Temp : -20℃ ~ 50℃/-4℉~122℉
Recoil Resistance(J) : 6000
Material
Housing : Aluminium Alloy
Objective Lens : Glass
code:
ns4-100/850/lrf ～ ns4-100/940/lrf
