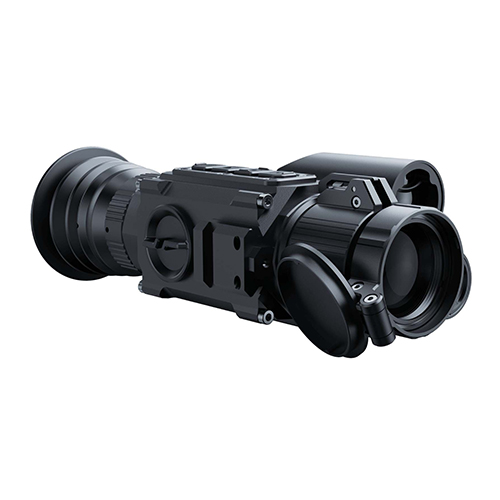

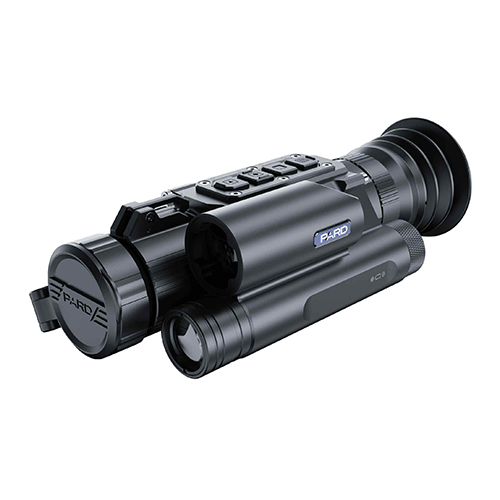

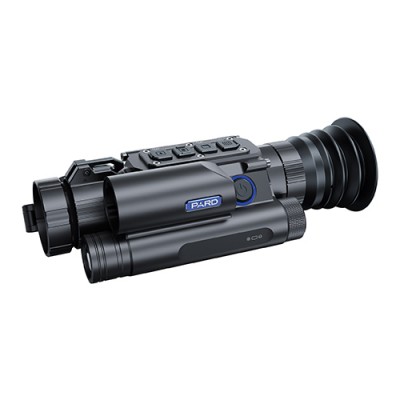

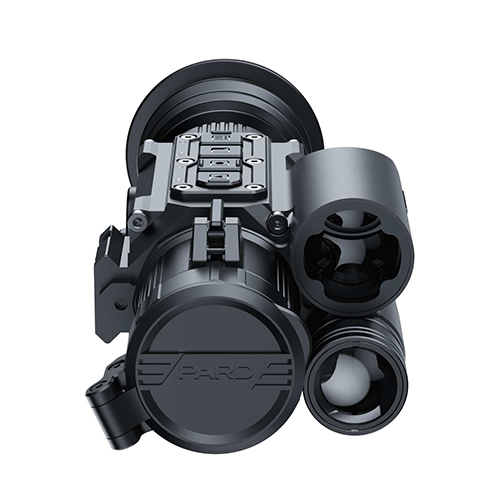

Model : NV008SP2 / NV008SP2-LRF
Classification : Night Vision(scope)
Sensor
Type : CMOS
Resolution(pixel) : 2688*1520
Pixel size(um) : 2.9
Sensitivity(lux) : 0.001
Frame rate(fps) : Color mode:60/Mono:30
Image Engine : PARD VLEA
Optics
Objective lens(mm) : 50/70
Optical Magnification(x) : 4.5x/6.5x
Digital zoom(x) : 2x
Continuous digital zoom : 4.5-9x/6.5-13x
Field of view (HxV)
Horizontal : 6.4º/ 4.6º
Vertical : 4.8º/ 3.4º
Diagonal : 8.6º/ 5.7º
Focus range : 3m-∞
Eye relief(mm) : 35
Exit pupil(mm) : 6
Diopter adjustment(D) : ± 5
IR Illuminator
IR Type : VCSEL
IR power : 5W
IR illuminating level : 3 Level
IR distance(m) : 350
IR Wavelength(nm) : 850/940
Display
Type : OLED
Resolution(pixel) : 1440*1080
Reticle Style : 6
Reticle Color : white/yellow/green
Color mode : Color/Black&white
Photo / Video
Photo resolution(pixel) : -
Photo format : -
Video resolution(pixel) : 1440*1080
Video format : MP4
Storage(GB) : Micro SD card (128GB)
Main function
Red dot : Yes
Mute button : Yes
PIP : Yes
LRF detection range(m) : 5-1000(LRF version)
Ballastic caculator : Yes
Range unit selection : meter/yard
Gyroscope : Yes
Self-activated recording : Yes
Auto recording : Yes
Loop recording : Yes
Time stamp : Yes
Record audio : Yes
Beep sound : Yes
Exposure compensation : Yes
Connections
USB Type-C : Yes
WiFi : Yes
Supported Apps : PardVision
Power Supply
Battery type : Lithium Ion18650
Output voltage(V) : 3.7
Operating time(h,max) : 8
External power supply(V) : USB Type-C
Environmental characteristic
Degree of protection : IP67
Operating temp(°C) : -20 – 50
Recoil Power(J) : 6000
Measurement
Product dimension(L x W x H, mm) : 175 x 70 x 55
N.W/pcs(with/without battery, g) : 495/450
code:
nv008sp2-850/70 ～ nv008sp2-940/70/f
