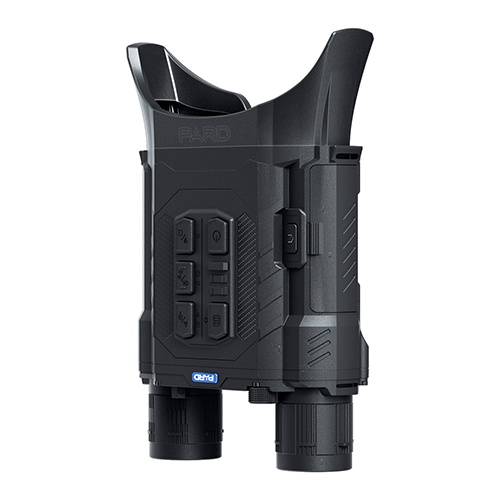

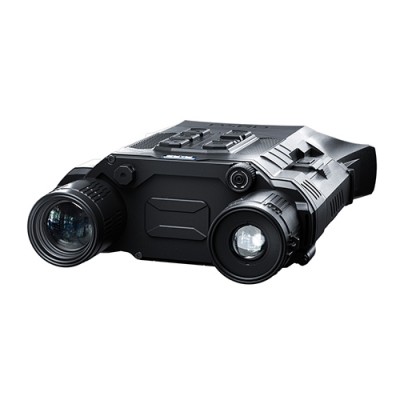

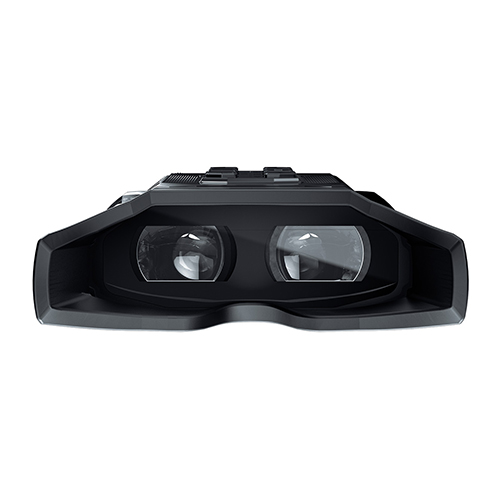

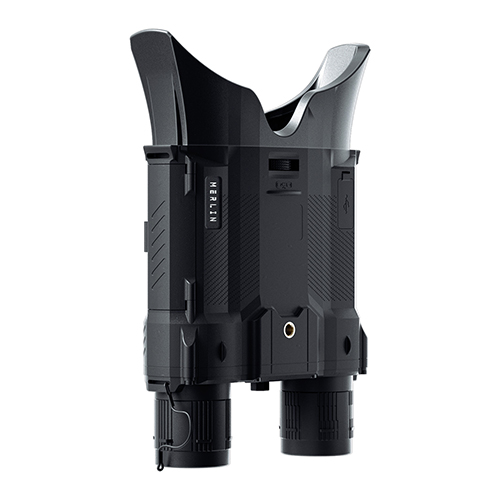

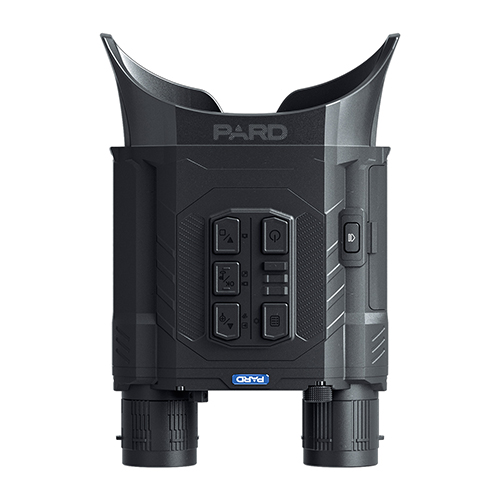

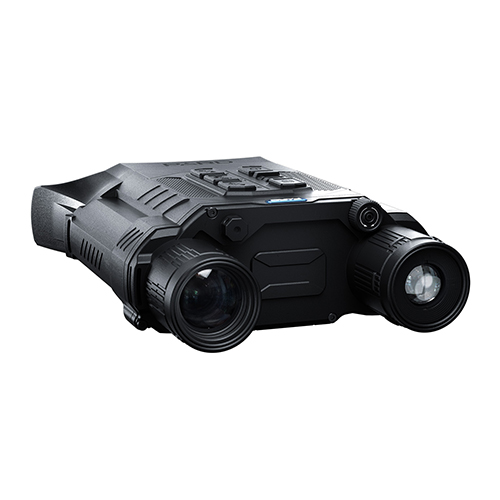

Model : Merlin
Sensor
Type : CMOS
Resolution(pixel) : 1920*1080
Pixel size(μm) : 2.9
Sensitivity(lux) : 0.001
Frame rate(Hz) : 60(Color)/30(B&W)
Image Engine : PARD VLEA
Optics
Objective lens(mm) : 35/50
Optical Magnification(x) : 3.2/4.6
Digital zoom(x) : 2
Field of view (HxV)
Horizontal : 6.8°/4.8°
Vertical : 5.1°/3.6°
Diagonal : 8.5°/6.0°
Focus range : 3m-∞
Diopter adjustment(D) : -5~3
IR Illuminator
IR Type : VCSEL
IR power(W) : 5
IR illuminating level : 3 Levels
IR distance(m) : 350
IR Wavelength(nm) : 850/940
Display
Type : OLED
Resolution(pixel) : 640*480
Color mode : Color/Black&White
Main function
PIP : Yes
Auto recording : Yes
Loop recording : Yes
Time stamp : Yes
Record audio : Yes
Exposure compensation : Yes
Storage(GB) : Micro SD card (Max. 128GB)
Connections
USB Type-C : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery type : Lithium Ion 21700*1
Output voltage(V) : 3.7
Operating time(h,max) : 6
External power supply(V) : Type-C
Environmental characteristic
Degree of protection : IP67
Operating temp(°C/°F) : -30 ~ +55 / -22 ~ +131
Material
Housing : AL6061 & Composite
Objective lens : Glass
Measurement
Product dimension(L x W x H, mm) : 220*137*58
N.W/pcs(with/without battery, g) : 441.6
code:
me-35/850 ～ me-50/940
