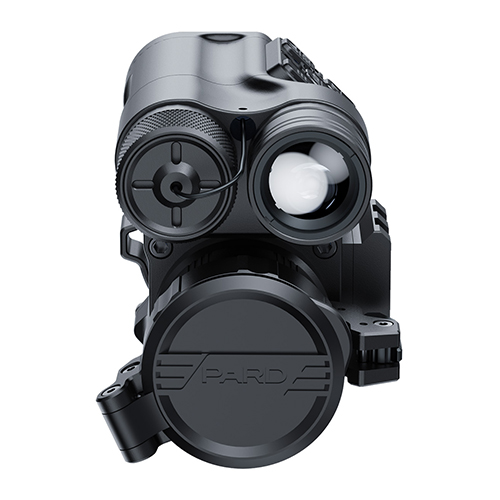

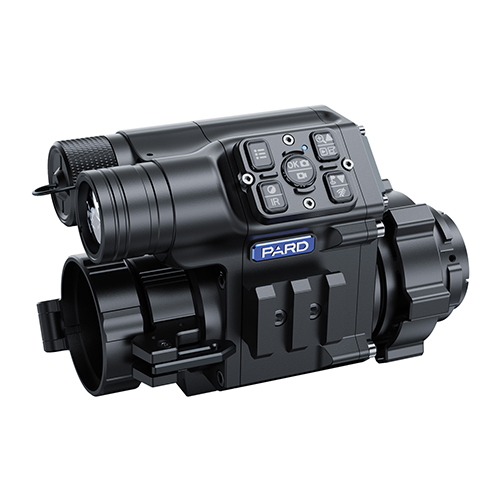

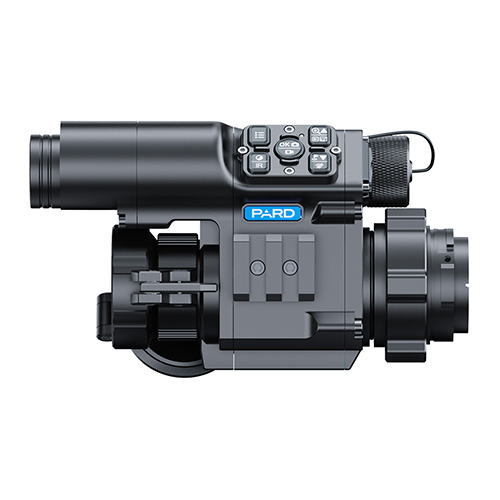

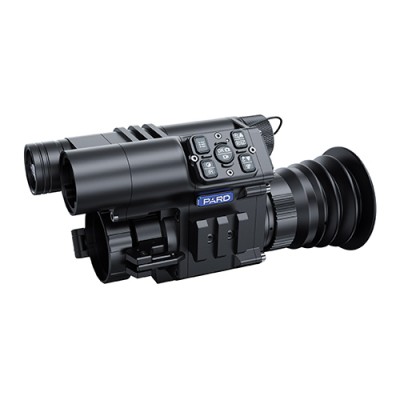

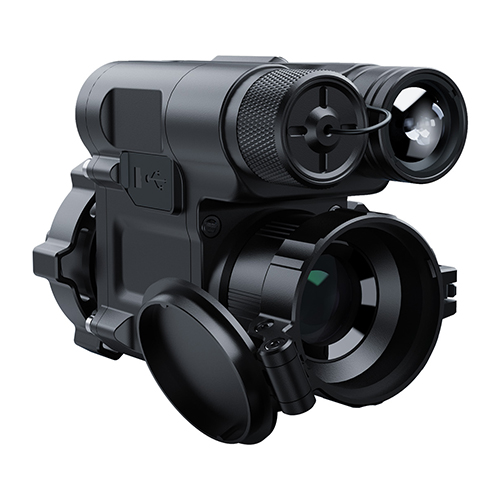

Model : FD1/FD1-LRF
Classification : Digital Night Vision Front Clip-on
Sensor
Type : CMOS
Resolution(px) : 1920*1080
Pixel Size(µm) : 2.9
Frame Rate(Hz) : Color:60/B&W:30
Image Engine : PARD VLEA
Optics
Purpose :
RifleScope/Monocular
Clip-on
Objective Lens(mm) : 30
Optical Magnification(x) :
3.5
1
Digital Zoom(x) :
2
N/A
Field of view (HxV)
Horizontal : 7.9
Vertical : 5.9
Diagonal : 9.9
Eye Relief(mm) :
30
N/A
Diopter Adjustment :
- 5D~+5D
N/A
Display
Purpose :
RifleScope/Monocular
Clip-on
Type : OLED
Resolution(px) : 1440*1080
Reticle Style : 6
Reticle Color :
Red/White/Yellow/Green
N/A
Image Mode : Color /Mono
Photo / Video
Photo Resolution(px) : 2592*1944
Photo Format : .JPG
Video Resolution(px) : TBD
Video Format : .mp4
Storage : TF card(128 GB,Max)
Main function
Purpose :
RifleScope/Monocular
Clip-on
LRF Detection Range : 1000m/1200yd
Ballistic Calculator :
Yes
N/A
PIP :
Yes
N/A
Self-motivated Recording : Yes
Loop Recording : Yes
Microphone : Yes
IR Wavelength(nm) : 850/940
IR Illuminating Level : 3 Levels
Connections
USB Tpye-C : Yes
WiFi : Yes
Supported Apps : PardVision
Power Supply
Battery Type : Lithium Ion 18650
Output Voltage(V) : 3.7
Operating Time(h) : ≤8
External Power Supply : Type-C
Environmental characteristic
Protective Class : IP67
Operating Temp : --4℉~122℉/-20℃~50℃
Recoil Resistance(J) : 6000
Material
Housing : Aluminum Alloy
code:
fd1-850 ～ fd1-940/f
