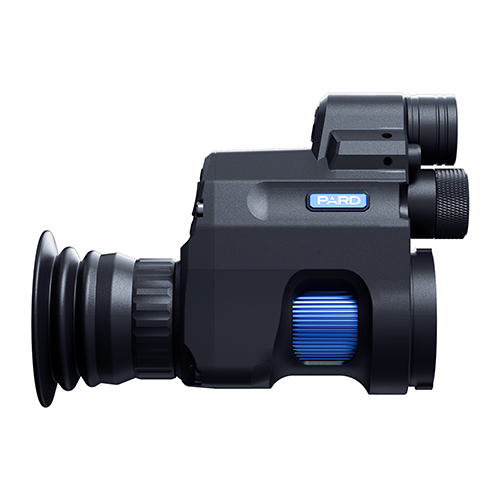

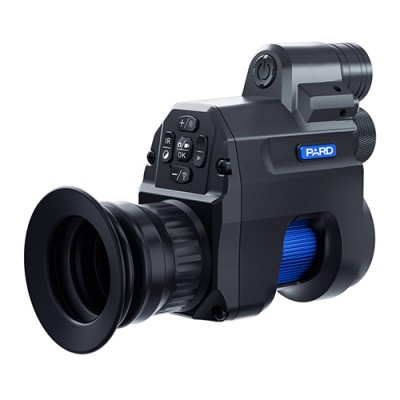

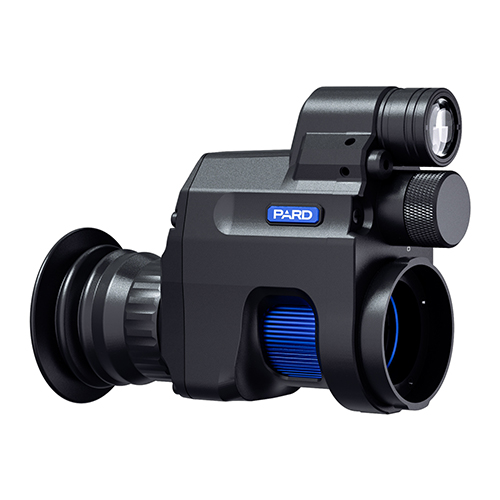

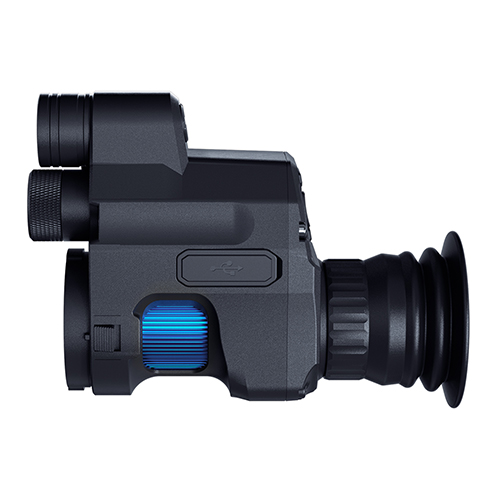

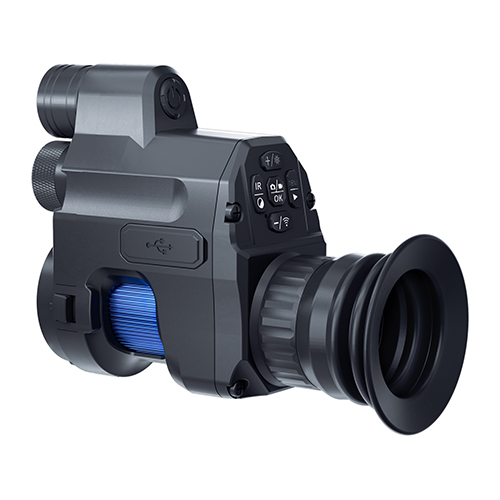

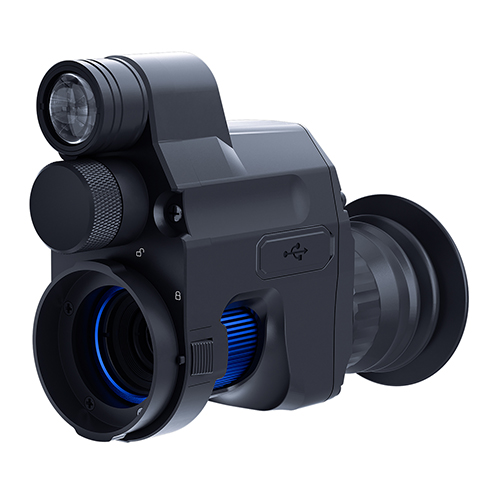

Model : NV007V2
Classification : Night Vision Clip-on
Sensor
Resolution(px) : 2560*1440
Sensitivity(Lux) : 0.001
Frame Rate(fps) : 60(color)/30(B&W)
Optics
Objective Lens(mm) : 14.5
Optical Magnification(x) : 1.4
Digital Zoom(x) : 1.5-3.5
Field of view (HxV)
Horizontal : 22°
Vertical : 16°
Diagonal : 27°
Eye Relief(mm) : 25
Diopter Adjustment(D) : ±5
Focus Range(cm) : 3-∞
Display
Type : OLED
Resolution(px) : 1440*1080
Color Mode : Color/Black&white
Photo / Video
Photo Resolution(px) : 1440*1080
Photo Format : .JPG
Video Resolution(px) : 1440*1080
Video Format : .mp4
Storage : Micro SD card (Max. 128GB)
Main function
Auto Recording : Yes
Loop Recording : Yes
Time Stamp : Yes
Record Audio : Yes
Exposure : Yes
IR Illuminator
IR Power(w) : 5
IR Illuminating Level : 3 Levels
IR Distance : 350m/383yds
IR Wavelength(nm) : 850/940
Connections
USB Tpye-C : Yes
HDMI Output : Yes
WiFi : Yes
Supported Apps : PardVision2
Power Supply
Battery Type : 18650 Li-ion Battery
Output Voltage(V) : 3.7
External Power Supply : USB Type-C
Environmental characteristic
Operating Temp : -30℃ ~50℃
Recoil Resistance(J) : 6000
Measurement
Product Dimension(with LRF,L * W * H, mm) : 135*55*100
N.W/pcs(with LRF&battery, g) : 275/229
code:
nv007v2-14.5/850 ～ nv007v2-14.5/940
