A forward offset mount to give proper eye relief specifically for AR platform rifles
Heavy duty for extreme use
1" ring diameter
Dual steel locking lugs
One-piece long clamp bar will not loosen or shift under heavy use or recoil
1/2" steel locking nuts
Places the scope 1.415 above the top of the rifle allowing for the use of scopes with up to a 56mm objective
Constructed from 6061 aluminum, hard coat anodized for a lifetime of service
100% Made in U.S.A. with a lifetime warranty
Torque cross bolts to 45 INCH/pounds
Torque ring cap screws to 25 INCH/pounds
QD1SM Technical Specs (1.0in)
Works with scopes with up to a 56mm objective
Weight 8.1 oz
Overall length: 5.875 in.
Width of rings: .85 in.
Distance between rings: 2.80 in.
Offset from base to the fi. ring: 1.40 in.
Distance - top of rail to center line of ring: 1.415 in.
QD30SM Technical Specs (30MM)
Works with scopes with up to a 56mm objective
Weight: 8.4oz
Overall length: 5.875 in.
Width of rings: .85 in.
Distance between rings: 2.80 in.
Offset from the first ring: 1.40 in.
Distance - top of rail to center line of ring: 1.50 in

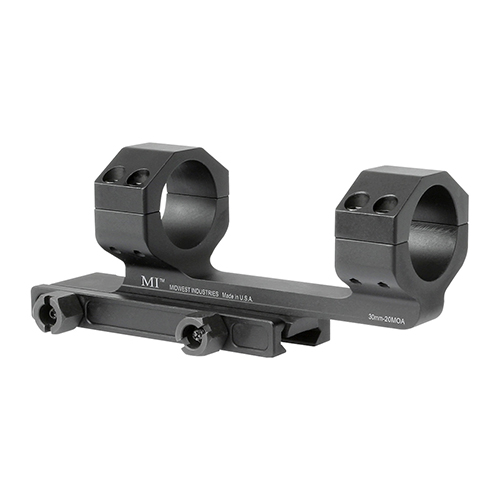

QD30SM-20MOA Technical Specs (20MOA 30MM)
Works with 30MM scopes with up to a 50mm objective
Weight: 8.4oz
Overall length: 5.875 in.
Width of rings: .85 in.
Distance between rings: 2.80 in.
Offset from the first ring: 1.40 in.
Distance - top of rail to center line of ring: 1.50 in.
code:
mi-sm1.0g2 ～ mi-sm30g2-20moa
