The smoothest functioning QD lever on the market
Superior clamping that will not damage or coin the rail surface
Extremely smooth in operation with a multi-facetted adjustment nut to get the exact tension required by the operator
Fully adjustable with no tools required, can be adjusted to fit rails not machined to mil-spec tolerances
Precision machined for optimum return to zero performance and reliability
Hard coat anodized 6061 aluminum for a lifetime of service
Patented QD lever by Elite Defense
100% made in the U.SA. with MI Lifetime Warranty

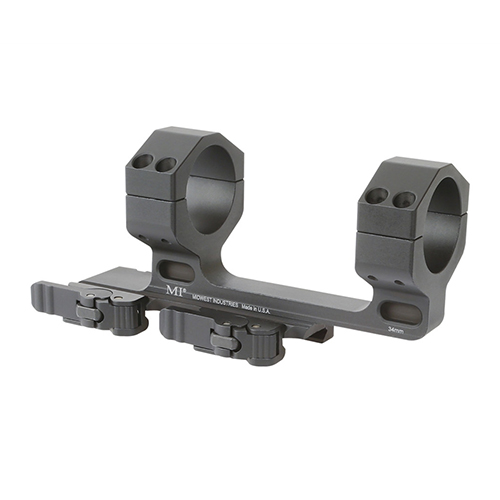

QD34SM Technical Specs (1.4 Offset)
Works with scopes with up to a 56mm objective
Weight: 8.7 ounces
Overall length: 5.875 inches
Width of rings: .850 inches
Distance between rings: 2.800 inches
Offset from base to first ring: 1.400 inches
Distance from top of rail to center line of ring: 1.550 inches
QD34SMH Technical Specs (High 1.5 Offset)
Works with scopes with up to a 56mm objective
Weight: 9.3 oz
Overall length: 5.875 in.
Width of rings: 0.850 in.
Distance between rings: 2.800 in.
Offset from the first ring: 1.500 in.
Distance - top of rail to center line of ring: 1.930 in.
code:
mi-qd34sm ～ mi-qd34smh
