The smoothest functioning QD lever on the market
Superior clamping that will not damage or coin the rail surface
Extremely smooth in operation with a multi-facetted adjustment nut to get the exact tension required by the operator
Fully adjustable with no tools required, can be adjusted to fit rails not machined to mil-spec tolerances
Precision machined for optimum return to zero performance and reliability
Hard coat anodized 6061 aluminum for a lifetime of service
Patented QD lever by Elite Defense
100% made in the U.S.A. with MI Lifetime Warranty
QD1SM Technical Specs (1.40 Offset)
Works with scopes with up to a 56mm objective
Weight 8.1 oz
Overall length: 5.875 in.
Width of rings: .85 in.
Distance between rings: 2.80 in.
Offset from base to the fi. ring: 1.40 in.
Distance - top of rail to center line of ring: 1.415 in.

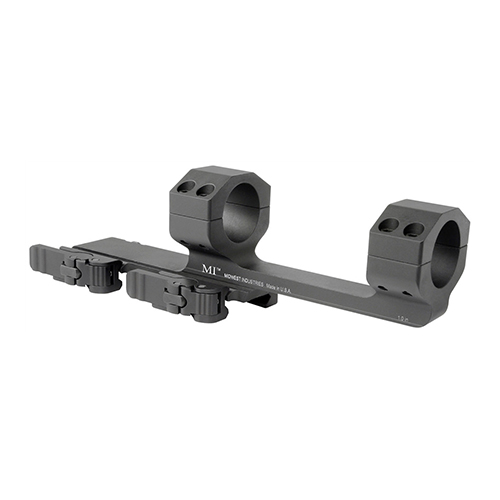

QD1SM-X Technical Specs (2.80 Offset)
Works with scopes with up to a 56mm objective
Overall length: 5.875 in.
Width of rings: .85 in.
Distance between rings: 2.80 in.
Offset from the first ring: 2.80 in.
Distance - top of rail to center line of ring: 1.415 in.

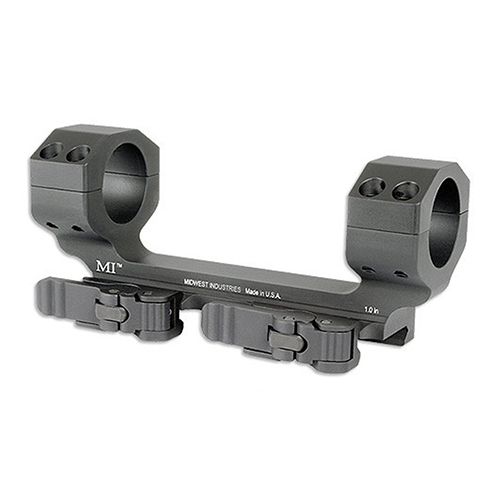

QD1SMHD Technical Specs (Heavy Duty)
Works with scopes with up to a 56mm objective
Weight 7.5 oz
Overall length: 5.100 inches
Width of rings: .850 inches
Distance between rings: 3.400 inches
Distance - top of rail to center line of ring: 1.415 in.
code:
mi-qd1sm ～ mi-qd1smhd
