Updated generation to bring function and aesthetics to the MK2 product series
Torx hardware on caps
Premium engraving throughout the mount
Replacement optic-specific scope ring caps are available for purchase
The smoothest functioning QD lever on the market
Superior clamping that will not damage or coin the rail surface
Extremely smooth in operation with a multi-faceted adjustment nut to get the exact tension required by the operator
Fully adjustable QD lever with no tools required - can be adjusted to fit rails not machined to Mil-Spec tolerances
Precision machined for optimum return to zero performance and reliability
Hard Coat Anodized 6061 Aluminum for a lifetime of service
Patented QD lever by Elite Defense
Includes Midwest Industries Optic Mount Tool for scope adjustment and fitting

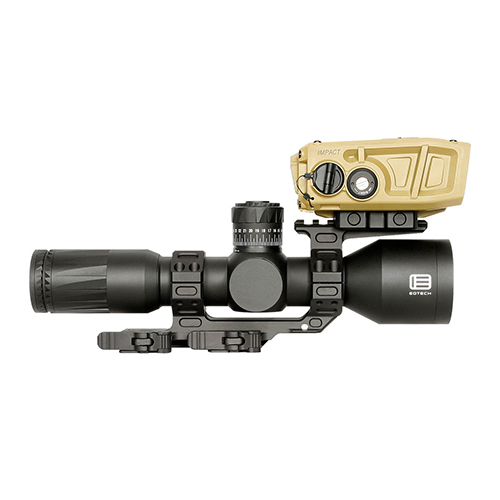

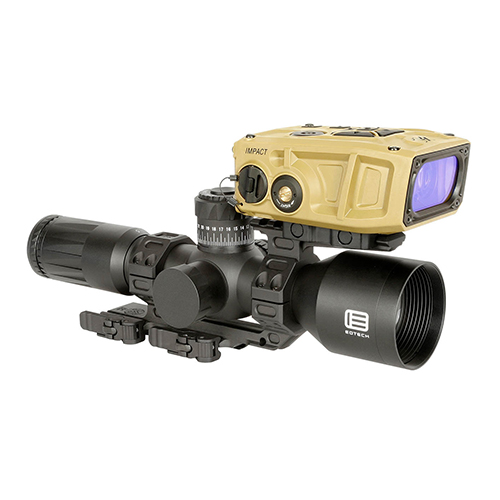

Works with scopes with up to a 56mm objective
Made in the USA

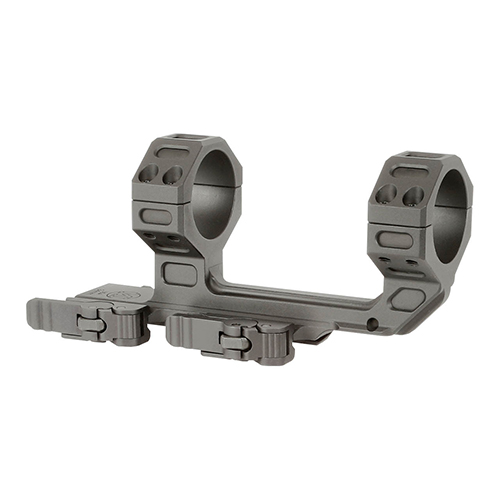

MI-MK2-QD34SM (Standard) Specs
Weight: 8.3oz
Overall length: 5.875”
Width of rings: .850”
Distance between rings: 2.800”
Offset from base to first ring: 1.400”
Distance from top of rail to center line of ring: 1.550”

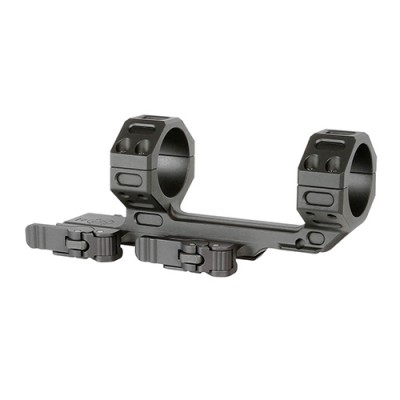

MI-MK2-QD34SMH (High) Specs
Weight: 8.8oz
Overall length: 5.875 in.
Width of rings: 0.850 in.
Distance between rings: 2.800 in.
Offset from the first ring: 1.500 in.
Distance - top of rail to center line of ring: 1.930 in.
code:
mi-mk2-qd34sm ～ mi-mk2-qd34smh
